Akuvox R20A-2 2-Wire SIP Video Door Phone
Login to buyNow you can enjoy the benefits of advanced IP network security without replacing a single wire.
Key Features:
- Effortless Upgrade:
Utilizes existing 2-wire infrastructure, eliminating the need for disruptive rewiring projects.
Powered by compatible Akuvox devices (NS-2 or C313W-2) for easy integration.
- Enhanced Security:
Vandal-resistant body with a flush button for added durability.
Wide-angle camera (110°H, 58°V) provides a clear view of visitors.
Embedded IC/ID card reader allows for secure access control (details omitted for brevity).
Two-way audio communication over IP networks for clear communication.
- Advanced Technology:
Echo cancellation and noise suppression for crystal-clear audio.
H.264 video compression for efficient data transmission.
-
Vendor:
Akuvox
- Description
Product Overview

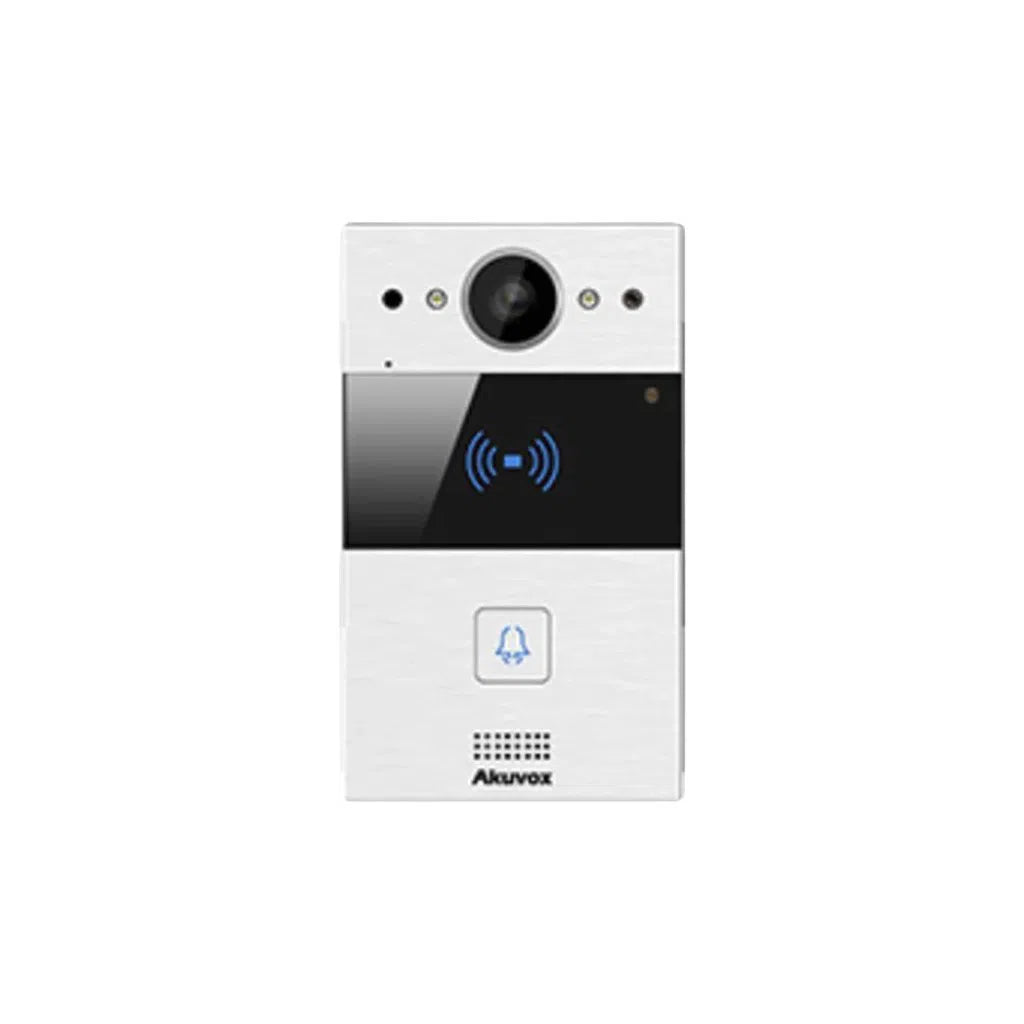

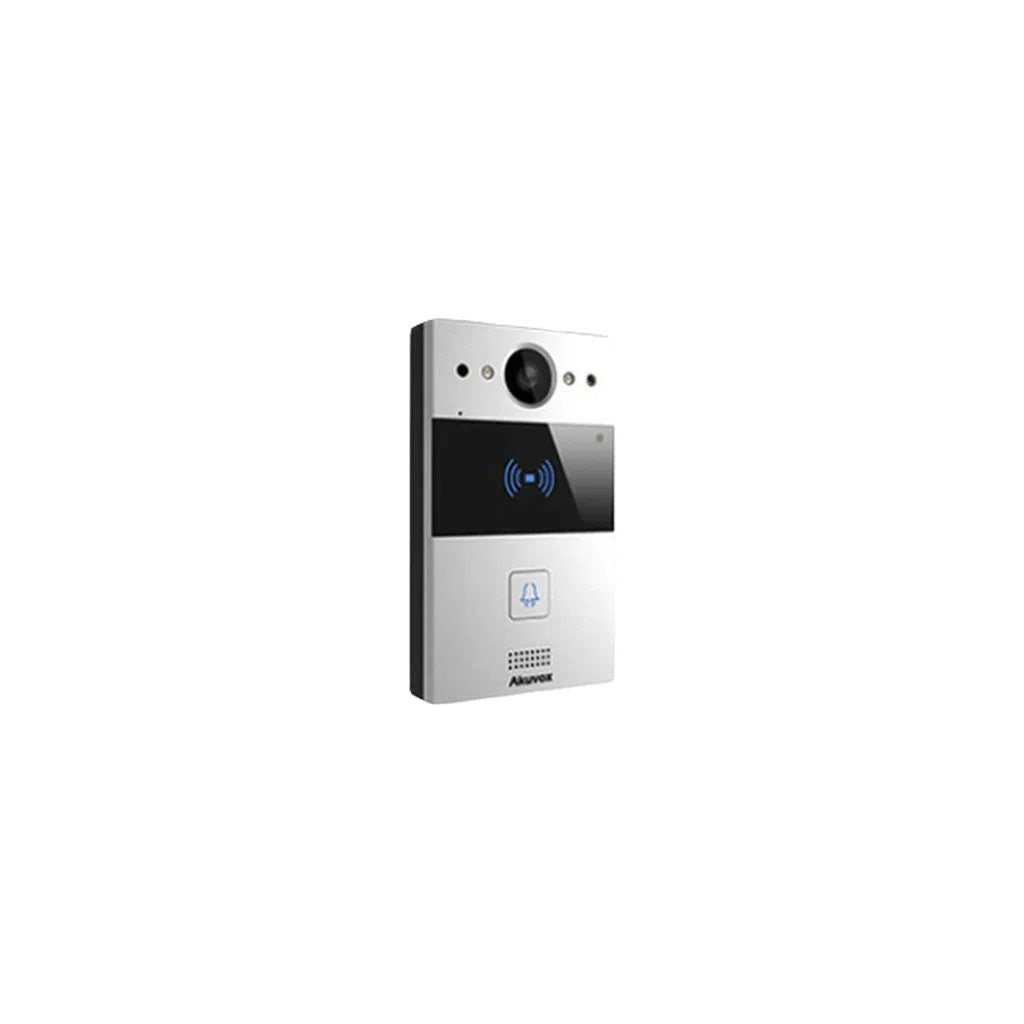

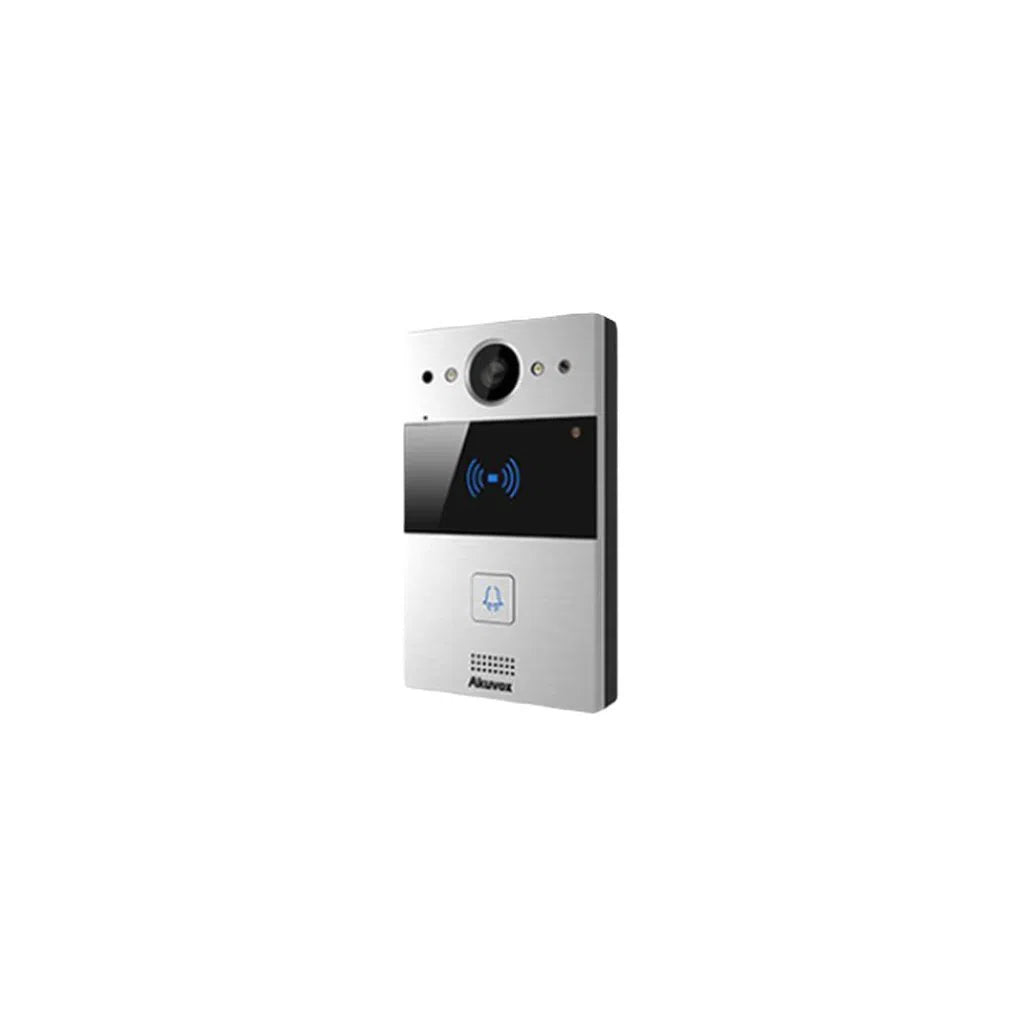

The Akuvox R20A-2 is a compact, vandal-resistant 2-wire IP video door phone intercom designed to provide secure entry management for residential homes, multi-dwelling apartments, and commercial offices. Equipped with a high-definition 2-megapixel camera delivering a wide 110° horizontal viewing angle and IR night vision, it provides clear video feeds for visitor identification day or night.
Engineered specifically for retrofit installations, the R20A-2 transmits power and data over a single pair of legacy 2-wire cables, bypassing the need to run new Ethernet lines. It features a built-in dual-frequency RFID card reader (13.56MHz with NFC & 125kHz), an IP65 weather-resistant aluminum alloy housing, two-way audio with echo cancellation, and an integrated door release relay. Supplied directly through Total Security Equipment.
Key Capabilities
2-Wire Cable Infrastructure
Carries network communication and 48V DC power over existing 2-wire lines, dramatically lowering installation time and costs for upgrades.
2MP Wide-Angle Camera & IR Night Vision
Captures crisp 1080p video at 25fps with a 110°(H) / 58°(V) field of view and high-intensity IR LEDs for night illumination.
Dual-Frequency RFID Reader
Integrated RF card reader supports 13.56MHz (with NFC) and 125kHz keyfobs or cards for convenient contactless keyless access.
Rugged IP65 Aluminum Alloy Design
Constructed with a vandal-resistant aluminum alloy front panel and flush call button, built to withstand harsh outdoor elements (-30°C to +60°C).
SIP Standard Intercom Communication
Fully compatible with SIP standards (v1/v2) to connect seamlessly with IP-PBX platforms, indoor monitors, and mobile intercom apps.
Door Relay & Access Controls
Features 1 output relay for controlling door locks or gates via DTMF tones, complemented by Wiegand and RS485 expansion ports.
Best For
Upgrades old analog intercom door stations without running new Cat5/Cat6 network wires.
Provides multi-tenant buildings with reliable visitor verification, card access, and door lock control.
Integrates with IP-PBX phone systems for direct receptionist call handling and remote gate opening.
Durable IP65 weather-rated construction handles heavy rain, dust, and direct sun exposure.
Why Choose the R20A-2
The Akuvox R20A-2 provides a high-performance entry solution for modernising door security over 2-wire cabling. By combining a 1080p wide-angle camera, dual RFID card access, and full SIP compliance in an IP65 vandal-resistant casing, it enables complete video entry control without costly rewiring. Sourced directly through Total Security Equipment.
Buyer Decision Tips
Key Features & Technical Specifications
| Model | Akuvox R20A-2 (2-Wire Version) |
| Front Panel Material | Aluminum Alloy |
| Camera Sensor | 2 Megapixel 1/2.7” CMOS Sensor (1080p @ 25fps) |
| Camera Field of View | 110° Horizontal / 58° Vertical |
| Night Vision & Lighting | High-Intensity IR LEDs with Automatic Light Sensor |
| RFID Card Reader | 13.56MHz (with NFC Support) & 125kHz Frequencies |
| Audio System | Built-In Speaker (4Ω/3W) & Mic (-40dB) with Echo Cancellation |
| Relay & Expansion Ports | 1x Output Relay | 1x Input Zone | Wiegand Port | RS485 Port |
| Power Supply | 48V DC Two-Wire Power Supply Interface |
| IP Rating & Temp | IP65 Weatherproof | -30°C to +60°C Operating Temperature |
| Dimensions | Wall-Mounted: 145 x 85 x 27.5 mm | Flush-Mounted: 189 x 120 x 56.5 mm |
Ideal Use Cases
2-Wire Intercom Retrofits
Replaces old door units by reusing existing 2-wire cabling to stream high-definition IP video and audio.
Gated Property Access
Triggers automated driveway gates or entry doors using contactless RFID keyfobs or DTMF phone commands.
Commercial IP-PBX Integration
Registers directly to hosted or on-site SIP PBX servers to route visitor calls to office desk phones or mobile apps.
NVR Surveillance Streaming
Streams live 1080p camera feeds via RTSP protocol directly into third-party network video recorders for continuous recording.
Choosing the Right Model
Choose this model (R20A-2) if…
- You are installing or upgrading an intercom using existing 2-wire cabling.
- You require contactless RFID card access along with a 2MP HD camera.
- You need an IP65 weatherproof, compact door panel for compact entryways.
Choose a different model if…
- You have Cat5/Cat6 Ethernet cables with PoE. Select the standard IP version, the Akuvox R20A.
- You need a touchscreen entry panel with starlight video. Consider the Akuvox X916S flagship door phone.
FAQs
1. Can the R20A-2 be installed on existing 2-wire cables?
Yes, the Akuvox R20A-2 is engineered specifically for 2-wire installations, reusing existing cabling to transmit network data and power.
2. What RFID frequencies does the built-in reader support?
The integrated card reader supports both 13.56MHz (including NFC capabilities) and 125kHz card/keyfob standards.
3. Is the door station outdoor weatherproof?
Yes, it features an IP65-rated aluminum alloy panel designed to withstand dust, rain, and operating temperatures from -30°C to +60°C.
4. Can I stream the camera feed to my local NVR system?
Yes, the 2MP camera supports RTSP streaming and H.264 video compression for seamless recording on 3rd-party NVRs.
5. How is the door latch or lock released?
The R20A-2 features a built-in output relay that can be triggered via authorized RFID cards, DTMF tones during an active call, or remote mobile app controls.
6. Where can I purchase genuine Akuvox door stations in Australia?
Genuine Akuvox door stations and 2-wire indoor monitors are supplied directly through Total Security Equipment.
