SKU:R29C-L
Akuvox R29C-L IP Door Phone with Bluetooth & LTE module
Login to buyThis advanced system empowers you to manage entry points effectively and foster a safer environment.
Key Features:
- Multi-Layered Security:
- Dual cameras (3MP wide-angle with IR & 5MP VGA) for clear visual verification.
- Anti-spoofing facial recognition technology for enhanced security.
- Multiple authentication methods: contactless (NFC & Bluetooth), contact-based (RFID card reader), facial recognition, and QR code scanning for flexible access control.
- Seamless User Experience:
- Premium audio and video quality for clear communication.
- Real-time entrance monitoring for added awareness.
- Remote door opening for increased control.
- QR code scanning for convenient one-time access.
- Advanced Functionality:
- LTE wireless 4G data connectivity for added flexibility (requires only power connection).
- Android 5.1 operating system for smooth operation.
- SIP, ONVIF, Wiegand, PoE, and IP65 compatibility for seamless integration with existing systems and weatherproof performance.
- Versatile Installation:
- Flush or surface mountable options for a tailored fit (back boxes sold separately).
- Brushed steel finish for a sleek and professional aesthetic.
-
Vendor:
Akuvox
- Description
Product Overview

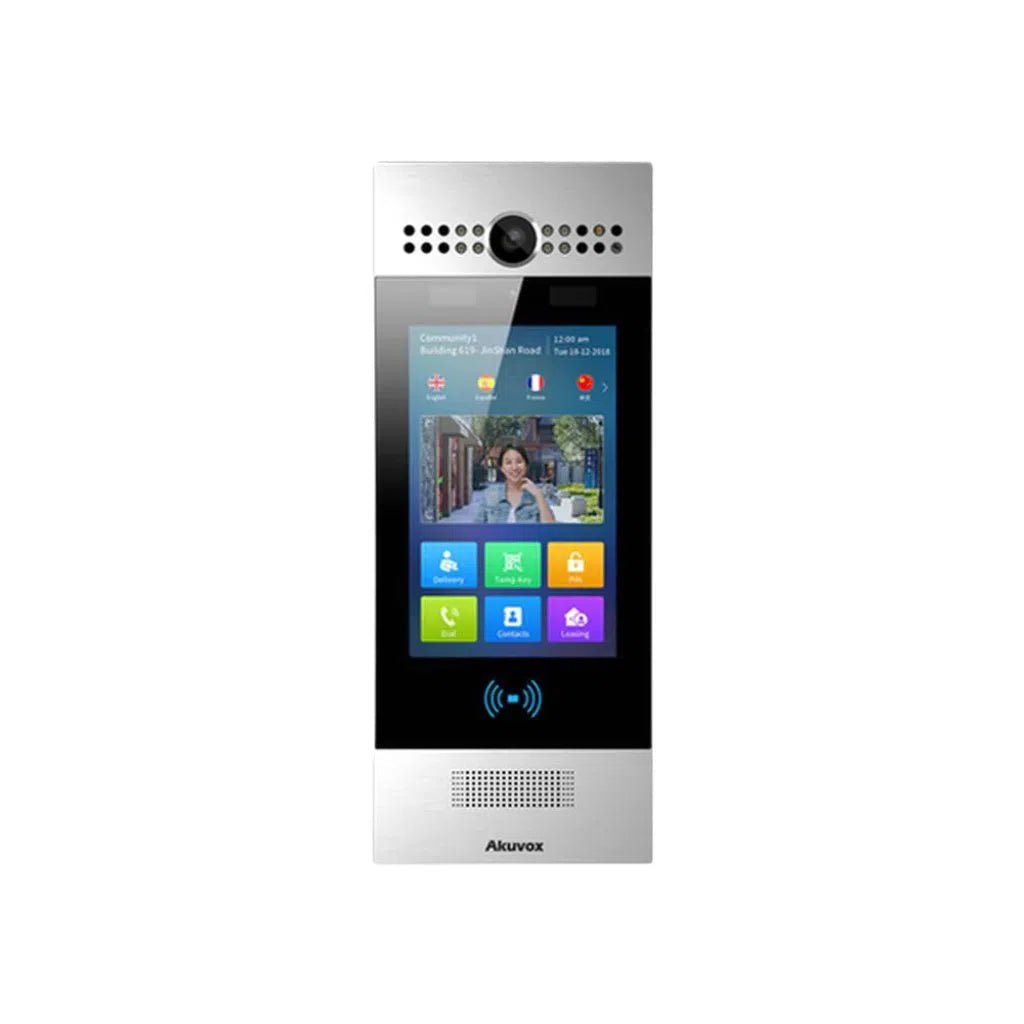

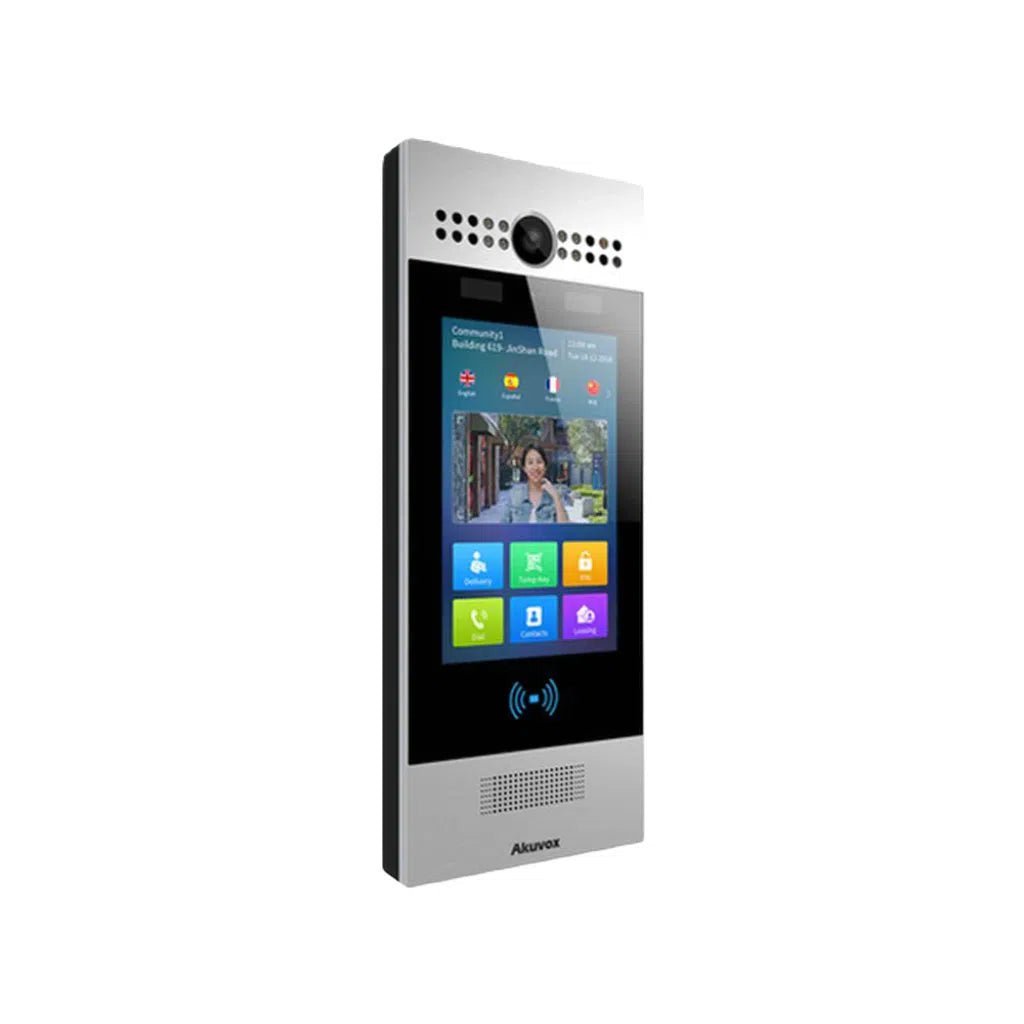

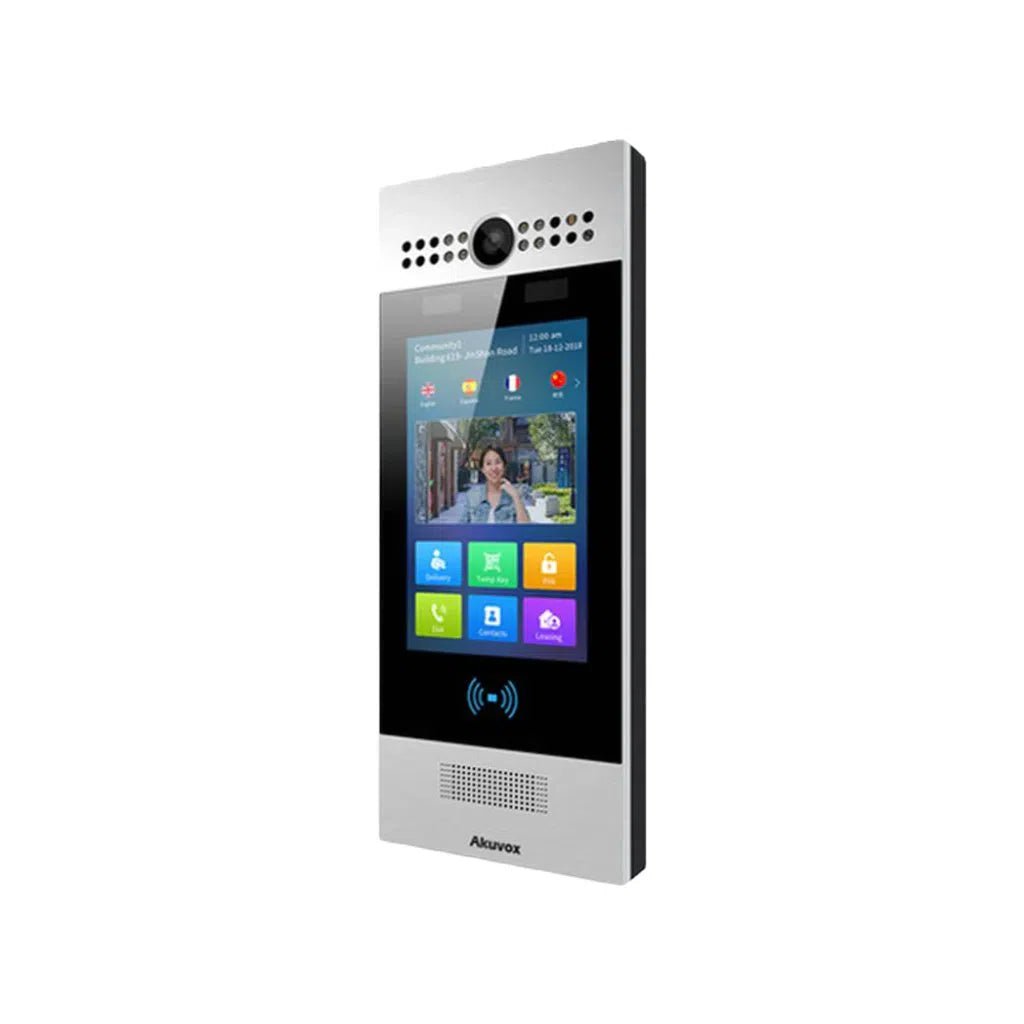

The Akuvox R29C-L is a high-performance, Android-powered IP video door phone designed to deliver advanced access control and high-definition video monitoring for modern residential complexes and commercial properties. Featuring a vibrant 7-inch capacitive IPS touchscreen interface, the unit provides visitors with intuitive directory navigation while offering property managers a customizable digital front-door experience.
Engineered for maximum entry versatility and physical protection, the R29C-L features dual anti-spoofing cameras with facial recognition (>99.9% accuracy), contactless RFID card readers (125kHz & 13.56MHz), Bluetooth access, QR code scanning, and PIN entry. Built-in 4G LTE wireless connectivity eliminates the need for complex network cabling during retrofit installations, while its IP65 weatherproof and IK06 vandal-resistant aluminum housing ensures long-lasting outdoor reliability. Supplied directly through Total Security Equipment, it integrates seamlessly into open SIP, ONVIF, and Wiegand ecosystems.
Key Capabilities
Facial Recognition & Anti-Spoofing
Powered by dual cameras (2MP main + 1MP auxiliary), delivering face recognition speeds under 0.5s per person with advanced photo/video anti-counterfeiting prevention.
7-Inch IPS Touchscreen Interface
Full-color capacitive display enables clear digital tenant directories, custom business welcome screens, touch keypads, and user navigation options.
Integrated 4G LTE Connectivity
Supports wireless LTE data connections, making it ideal for gate posts or remote sites where running Ethernet wiring is cost-prohibitive.
Multi-Way Authentication
Offers maximum access flexibility supporting Face Verification, RFID Cards (EM & Mifare), Bluetooth (BLE), PIN Codes, and QR Code entry for visitors.
Open SIP & ONVIF Compatibility
Seamlessly connects with IP-PBX systems, indoor monitors, mobile client apps (SmartPlus), and 3rd-party NVR video surveillance systems.
Rugged IP65 & IK06 Protection
Built with a heavy-duty aluminum front panel offering IP65 weather resistance and IK06 impact protection against dust, rain, and vandalism.
Best For
Provides dynamic directory navigation and contactless facial recognition for multi-tenant residential buildings.
Delivers high-end guest greeting screens, temporary visitor QR code passes, and multi-department access options.
Perfect for entry points lacking direct network cabling thanks to 4G wireless cellular connectivity.
Ensures zero photo/video spoofing during biometric face authentication via dual-camera verification.
Why Choose the R29C-L
The Akuvox R29C-L stands out as a flagship door station by uniting virtually every modern access control methodology into a single, sleek 7-inch terminal. Whether managing resident access via facial recognition, issuing temporary QR codes to delivery personnel, or leveraging 4G LTE to secure a perimeter gate without trenching network cables, the R29C-L delivers unmatched flexibility. Sourced directly through Total Security Equipment, it bridges high-end property aesthetics with commercial-grade security protocols.
Buyer Decision Tips
Key Features & Technical Specifications
| Operating System & Memory | Android OS | 2GB RAM / 16GB ROM |
| Display Screen | 7" IPS Capacitive Touchscreen LCD |
| Camera Setup | Dual Camera: 2MP Main (Auto-Lighting) + 1MP Aux (Anti-Spoofing) |
| Video Resolution & Codec | Up to 1920x1080p @ 25fps | H.264 Codec | 105°(H) / 55°(V) FOV |
| Authentication Methods | Face Recognition, RFID (125kHz & 13.56MHz), BLE, PIN, QR Code |
| Facial Recognition Specs | Accuracy >99.9% | Comparison Speed <0.5s | False Rate <0.1% |
| Relays & Hardware Interfaces | 3 Relay In / 3 Relay Out | Wiegand Port | RS485 Port |
| Connectivity Protocols | SIP v1/v2, ONVIF, RTSP, 4G LTE, IPv4, HTTPS, PoE (802.3at) |
| Weather & Vandal Rating | IP65 Waterproof / IK06 Impact-Resistant Aluminum Front Panel |
| Dimensions (H x W x D) | Wall-Mount: 324 x 130 x 33mm | Flush-Mount: 324 x 130 x 60mm |
Ideal Use Cases
High-End Residential Apartments
Enables seamless digital tenant lookups, mobile phone app video calling, and hands-free facial recognition entry for residents.
Commercial Office Parks
Provides interactive corporate branding, employee Bluetooth/card credentials, and temporary QR code passes for scheduled visitors.
Remote Perimeter Gates
Leverages LTE wireless connectivity to manage entry barriers and vehicle gates without needing physical Ethernet trenching.
Mixed-Use & Shared Developments
Manages complex multi-zone access requirements with 3 independent relay outputs controlling doors, gates, and turnstiles.
Choosing the Right Model
Choose this model (R29C-L) if…
- You require full 4G LTE wireless data connectivity for locations without local Ethernet infrastructure.
- You need high-speed facial recognition with anti-spoofing dual cameras and a large 7-inch interactive touch directory.
- You want comprehensive access methods (QR codes, BLE, RFID, PIN, and Face) in one outdoor terminal.
Choose a different model if…
- You only need simple physical call buttons. Select multi-button door phones (like the R20BX5) for boutique 5-tenant properties.
- You have local network wiring and do not require LTE wireless. Look at standard IP-only touchscreen models (such as the base R29C).
FAQs
1. How does the dual-camera system prevent photo anti-spoofing?
The combination of a 2MP main camera and a 1MP auxiliary camera detects 3D depth and biometrics, preventing unauthorized entry attempts using printed photographs or smartphone video playback.
2. What are the benefits of built-in LTE connectivity?
LTE connectivity allows the door station to communicate via 4G wireless networks, eliminating the high cost of digging trenches or running long network cabling to distant outdoor gates.
3. Can visitors receive access via temporary QR codes?
Yes, the unit features white LED illumination and an optical sensor that scans QR codes generated via the SmartPlus mobile app for time-limited visitor access.
4. Can the R29C-L stream video directly to 3rd-party NVRs?
Yes, supporting ONVIF and RTSP video protocols, the main camera can operate 24/7 as an integrated CCTV node on your existing video management system.
5. How many independent door barriers can the unit unlock?
The unit includes 3 relay outputs and 3 relay inputs, allowing independent control over up to three separate barriers (e.g., pedestrian gate, vehicle barrier, and main door).
6. Where can I buy authentic Akuvox hardware and accessories?
Genuine Akuvox smart intercom systems, mounting kits, and technical support are supplied directly through Total Security Equipment.
