SKU:RG-ES205GC-P

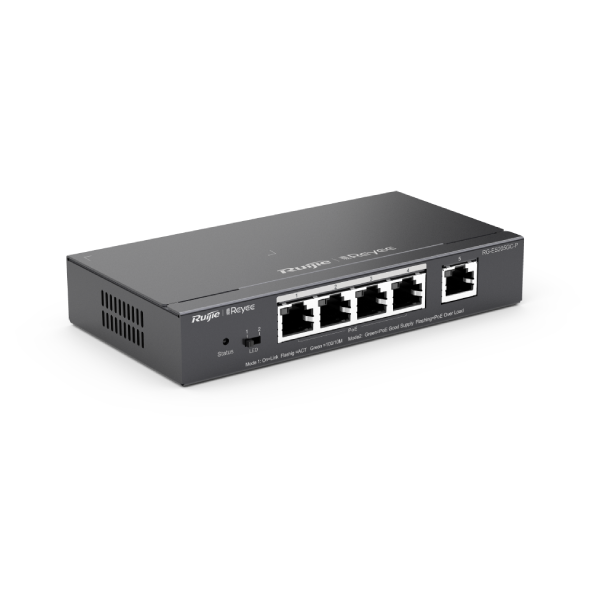

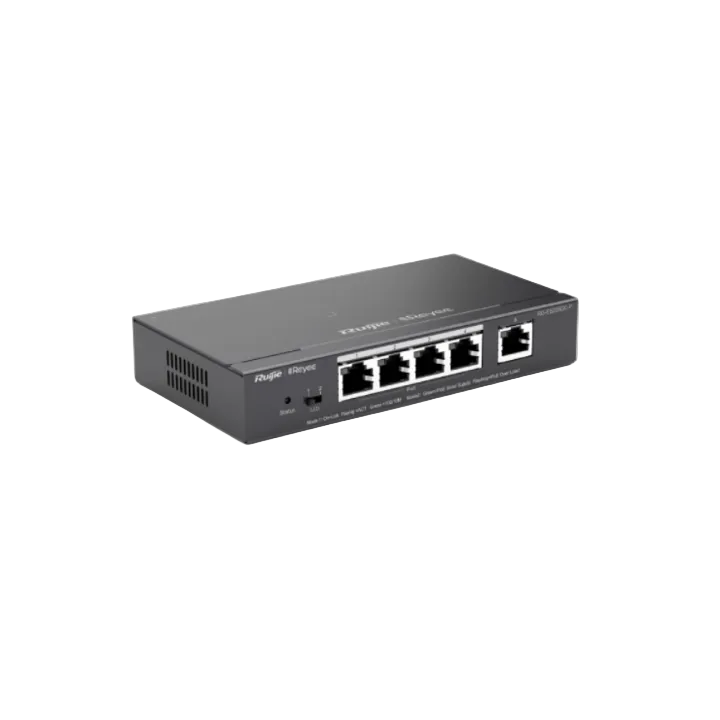

Ruijie 5-Port Gigabit Smart Cloud Mananged PoE Switch - RG-ES205GC-P
Login to buyFeatures
- 5-Port gigabit cloud managed switch with 4 PoE+ ports
- Cost-Effective Smart Cloud Managed Switches
- IP Camera Recognition, Unique Value for CCTV Network
- Automatic Loop Prevention Ensures Service Continuity
- Lifetime management on Ruijie Cloud at anytime anywhere
-
Vendor:
Ruijie
- Tags: Poe
- Description
Product Overview
The Ruijie RG-ES205GC-P is a 5-port Gigabit smart cloud-managed switch with 4 PoE+ ports, purpose-built for CCTV networks. It's designed to power and network IP cameras directly, with built-in IP camera recognition that identifies connected cameras and automatic loop prevention (RLDP) to keep the network running if a cable is accidentally looped back on itself.
Being cloud-managed means you can monitor and configure the switch remotely via the Ruijie Cloud platform — useful for installers managing multiple sites, or for checking on a system without a truck roll. It's a fanless, compact unit that tucks easily into a cabinet or cupboard. Supplied directly through Total Security Equipment.
Key Capabilities
5 Gigabit Ports, 4 PoE+
4 PoE+ (802.3at/af) ports for cameras, plus 1 Gigabit uplink port to your NVR, router or main network.
54W PoE Budget
Up to 30W available per port under 802.3at, shared from a 54W total budget across all 4 PoE ports.
IP Camera Recognition
Automatically identifies connected IP cameras and NVRs — a feature built specifically for CCTV networks.
Ruijie Cloud Management
Free lifetime remote management and monitoring via the Ruijie Cloud platform, from anywhere.
Best For
Powers and networks up to 4 IP cameras from one compact switch.
Installers can check on and configure the switch remotely via Ruijie Cloud.
Compact, fanless design suits a cupboard, riser or equipment rack.
Why Choose This Switch
A dedicated CCTV-oriented switch does more than a generic unmanaged one — the RG-ES205GC-P recognises connected IP cameras, protects the network from accidental loop-backs, and can be checked on remotely through Ruijie Cloud without a site visit. With 4 PoE+ ports and a 54W shared budget, it's a tidy, purpose-built way to power a small camera run from a single point. Available from Total Security Equipment.
Buyer Decision Tips
Key Features & Technical Specifications
| Model SKU | RG-ES205GC-P |
| Brand | Ruijie (Reyee) |
| Ports | 5 × 10/100/1000BASE-T Gigabit ports total; 4 × PoE+ ports plus 1 × Gigabit uplink |
| PoE Standard | IEEE 802.3at (PoE+) / 802.3af, up to 30W per port, 54W total PoE budget |
| Switching Capacity | 10Gbps |
| Forwarding Rate | 7.4 Mpps |
| Power Adapter | External DC adapter, 54V DC / 1.11A max, 100–240VAC input |
| Management | Ruijie Cloud (remote), free lifetime management; local smart-managed configuration also supported |
| Key Features | IP camera/NVR recognition, automatic loop prevention (RLDP), port isolation, PoE watchdog, fanless design |
| Operating Temperature | 0°C to 40°C |
| Dimensions | ≈148mm × 78mm × 26mm |
| Weight | ≈0.30kg (unit only) |
| Warranty | Commonly listed as 3 years by Ruijie and Australian resellers — confirm current warranty term with our team |
Ideal Use Cases
Small IP Camera Systems
Powers and networks up to 4 PoE IP cameras from a single compact switch.
Multi-Site Installers
Ruijie Cloud lets you check on and manage several installs remotely.
Home & Small Office CCTV
A tidy, purpose-built way to add a handful of IP cameras to an existing network.
Comms Cabinet Upgrades
Fanless and compact enough to slot into an existing cabinet alongside other gear.
FAQs
1. How many cameras can this power?
Up to 4 PoE+ cameras, using the 4 dedicated PoE ports, plus a separate uplink port to your NVR or router. The total PoE budget is 54W shared across those 4 ports, so check your cameras' combined power draw.
2. Do I need a Ruijie Cloud account to use it?
No — the switch works locally without one. A free Ruijie Cloud account is only needed if you want to monitor or configure it remotely over the internet.
3. Does it come with a power adapter?
Yes — it's supplied with its own external DC power adapter (100–240VAC input, so it works on Australian mains).
4. What's automatic loop prevention (RLDP)?
It's a feature that detects and blocks accidental network loops — for example, if a cable is mistakenly plugged into two ports on the same switch — which would otherwise flood and crash the network.
5. Where can I buy this switch in Australia?
It's available directly from Total Security Equipment.
Additional Information
Melbourne HQ
26 Davies Ave., Sunshine North, VIC 3020
03 9079 5566
Sydney Branch
38 Lisbon St., Fairfield East, NSW 2165
02 8722 0348
Ordering & Support
- Australia-wide shipping
- Trade accounts and volume pricing
- Phone support on PoE budget & network design
- Download Spec Sheet
Not sure if this switch's PoE budget covers your cameras, or need a bigger port count? Call our Melbourne team on 03 9079 5566 or Sydney on 02 8722 0348 — describe your setup and we will tell you honestly what fits.
