SKU:TKP-1068A

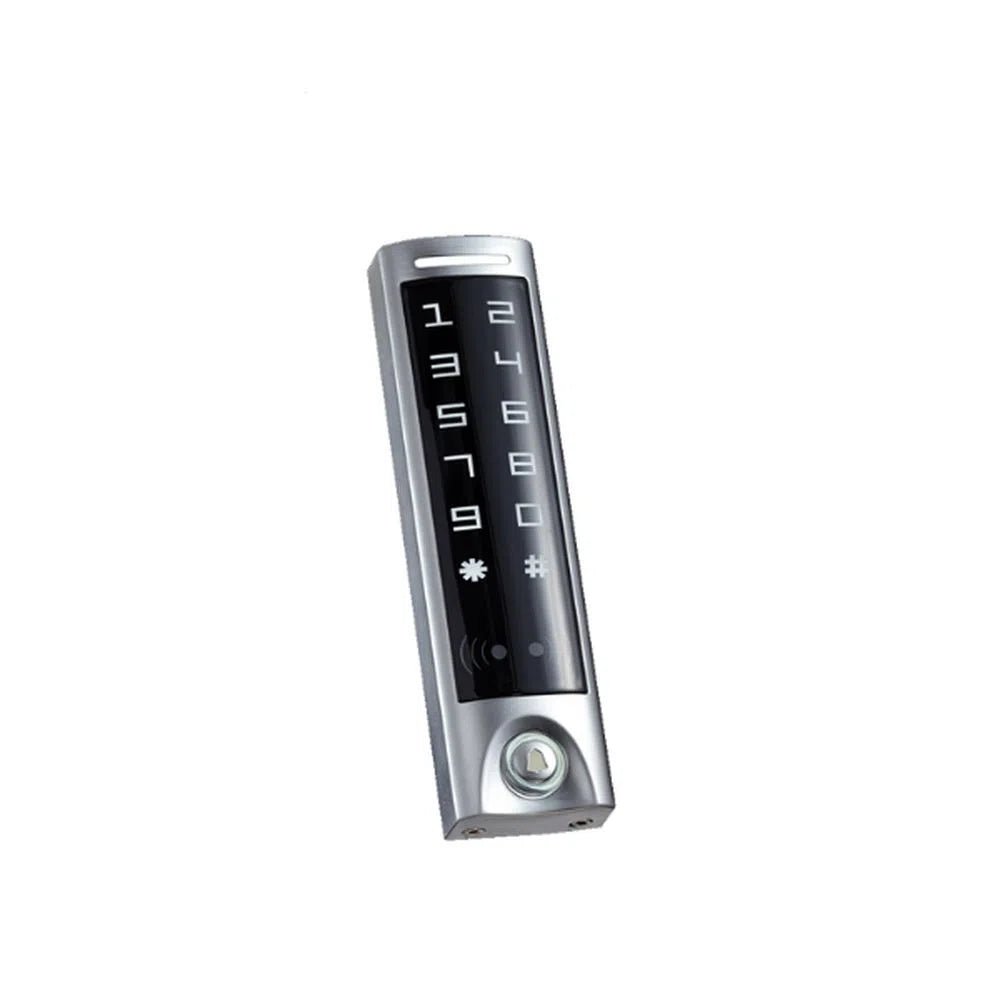

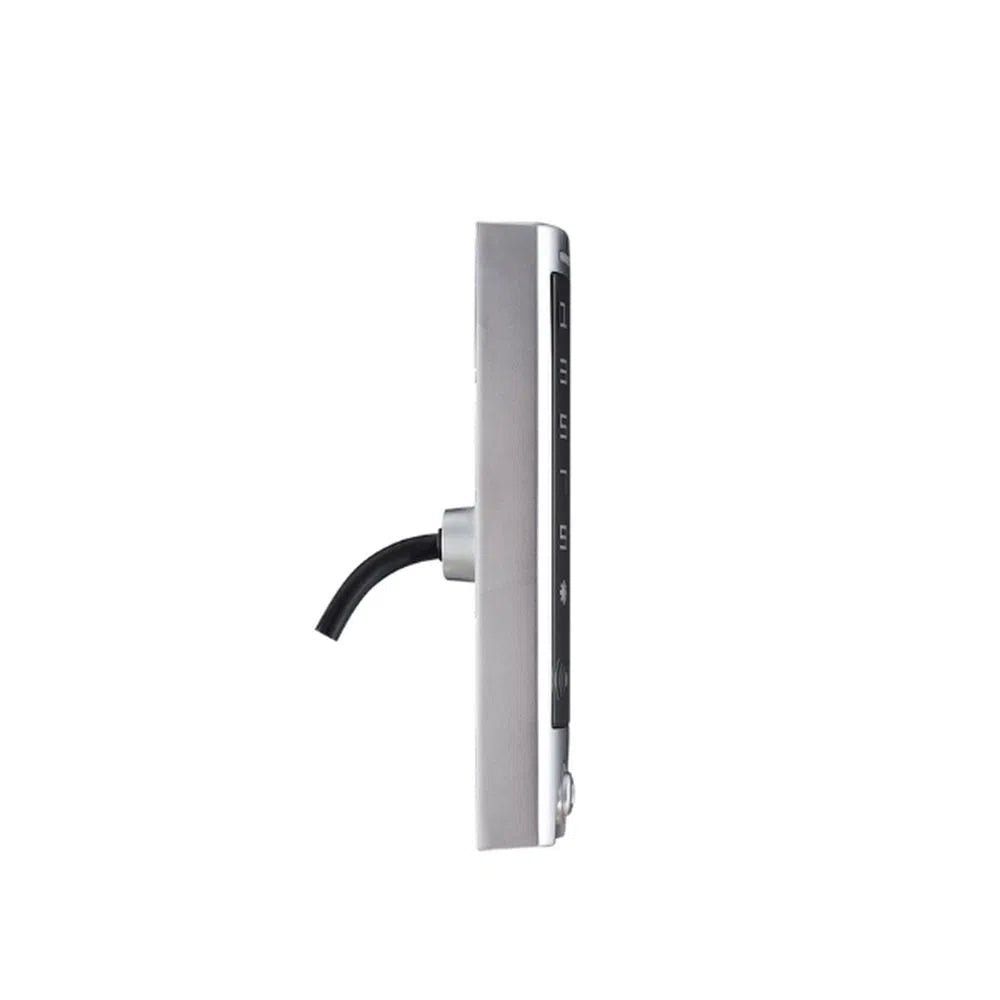

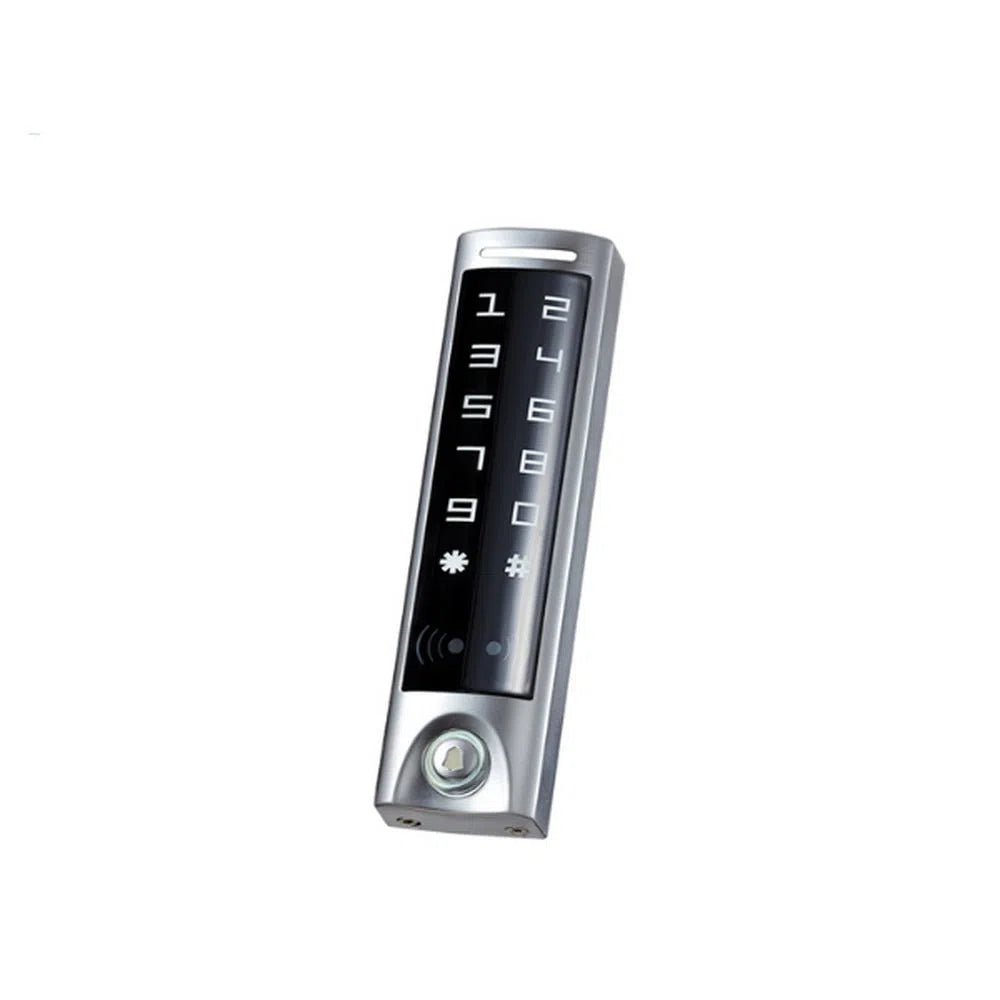

Access Control Electronic Touch Keypad, Waterproof - TKP-1068A
Login to buyThe access host supports 125kHz EM cards. It controls 1 door, supports up to 2000 users in total, each user have one card and one PIN. The access control unit supports 1 master code, one manager add a card, one manager delete card, 1 anti-duress card and 1 anti-duress PIN, providing users with easy operation and a safe guarantee.
Peculiarities
- Memory: 2000 combinations of passwords and individual access cards
- Supports functions such as trigger, call; pulse operation
- The casing is made of aluminium alloy with IP65 protection standards.
Basic Specifications
- Key reading range: 60 mm
- Built-in reader: EM-Marine
- Number of passwords and cards: 2000
- Sound indication: yes
- Card personification: writing, reading
- Power supply: DC 24 V
- Dimensions: 158.6 x 43 x 21.7 mm
- Weight: 500g
- Operating temperature range: -30 ° C - + 50 ° C
- Working humidity: no more than 95%
-
Vendor:
TotalSE
- Description
Product Overview
The TKP-1068A is a standalone electronic access control keypad for a single door — no separate control panel or software required. It reads 125kHz EM proximity cards and accepts a PIN code, storing up to 2,000 users with each person assigned their own card-and-PIN combination, plus a master code and dedicated manager cards for adding or removing users on site.
A rugged aluminium alloy, fully-potted housing rated IP65 means it copes with an exposed outdoor location as well as an indoor one, and built-in anti-duress card and PIN functions give staff a discreet way to signal a problem while still opening the door. Supplied directly through Total Security Equipment.
Key Capabilities
Standalone — No Panel Required
Self-contained card + PIN access control for a single door, with no separate controller or PC software needed.
2,000-User Capacity
Each of up to 2,000 users gets their own card-and-PIN combination, managed via a master code and manager cards.
IP65 Weatherproof Housing
Rugged, fully-potted aluminium alloy case suits exposed outdoor entries as well as indoor doors.
Anti-Duress Card & PIN
A dedicated duress card and PIN let a user open the door while discreetly signalling a problem.
Best For
A simple, affordable way to control one door without a full networked access system.
2,000-user capacity suits offices, warehouses, apartment blocks and shared facilities.
IP65-rated housing handles a gate, external door or car park entry.
Why Choose This Keypad
The TKP-1068A gives you proper standalone access control — card, PIN, master code and manager-level user administration — without the cost or complexity of a networked system with a separate controller and software. Its 2,000-user capacity is well ahead of basic entry-level keypads, and a fully-potted aluminium housing rated IP65 means it's built to handle real outdoor conditions, not just indoor use. Available from Total Security Equipment.
Buyer Decision Tips
Key Features & Technical Specifications
| Model SKU | TKP-1068A |
| Product Type | Standalone electronic access control touch keypad |
| Card Frequency | 125kHz EM proximity card |
| Card Reading Range | Up to ≈60mm |
| User Capacity | Up to 2,000 users, each with one card + one PIN |
| Output Format | Wiegand 26–37 |
| Relay Output | 1 relay, pulse/trigger modes, ≈3A switching current (confirm with our team) |
| Power Supply | DC 12–24V |
| Housing | Aluminium alloy, fully potted, IP65-rated |

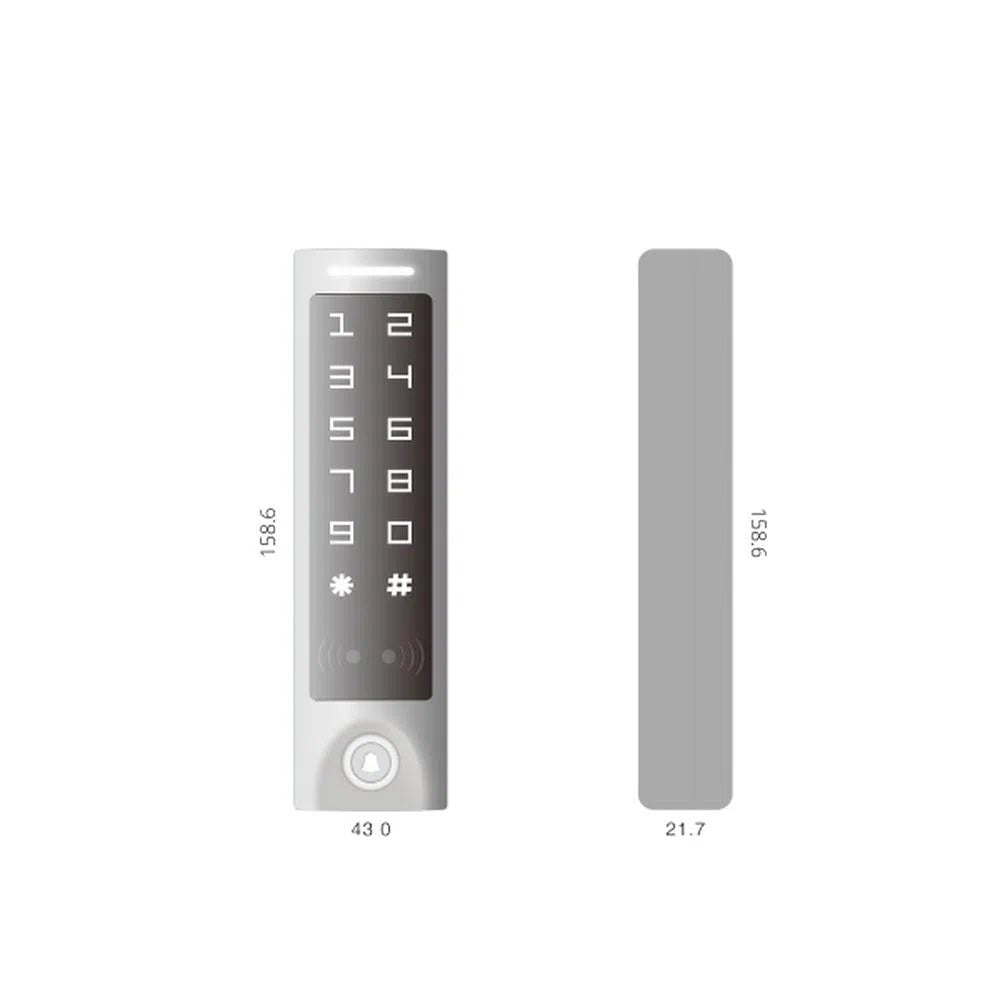

| Dimensions | 158.6mm × 43mm × 21.7mm |
| Weight | ≈500g |
| Operating Temperature | -30°C to +50°C |
| Humidity | Up to 95%, non-condensing |
| Security Functions | Master code, manager add/delete card, anti-duress card, anti-duress PIN |
| Feedback | Audio and visual (illuminated keypad) indicators |
| Mounting | Wall or gate-post mount, indoor or outdoor |
| Warranty | Confirm current warranty term with our team |
Ideal Use Cases
Warehouses & Staff Entries
Card + PIN access for staff doors without needing a full networked system.
Apartment & Common Doors
High user capacity suits shared entries with many residents needing access.
Gates & Car Parks
IP65 weatherproofing suits an outdoor gate post or car park boom gate control.
Budget-Conscious Single-Door Jobs
A cost-effective alternative to a networked access system for one door.
FAQs
1. Does this need a separate control panel or software?
No — the reader, keypad and controller are all built into this one unit. You manage users directly at the keypad using the master code and manager cards.
2. How many users can it store?
Up to 2,000 users, each assigned their own card and PIN combination.
3. Can it be installed outdoors?
Yes — it has a fully-potted aluminium alloy housing rated IP65, suitable for exposed outdoor locations as well as indoor doors.
4. What is the anti-duress function?
A dedicated duress card and duress PIN let a user open the door as normal while discreetly signalling that something is wrong, depending on how the output is wired into your alarm or monitoring system.
5. Where can I buy this keypad in Australia?
It's available directly from Total Security Equipment.
