SKU:TL-SF1024

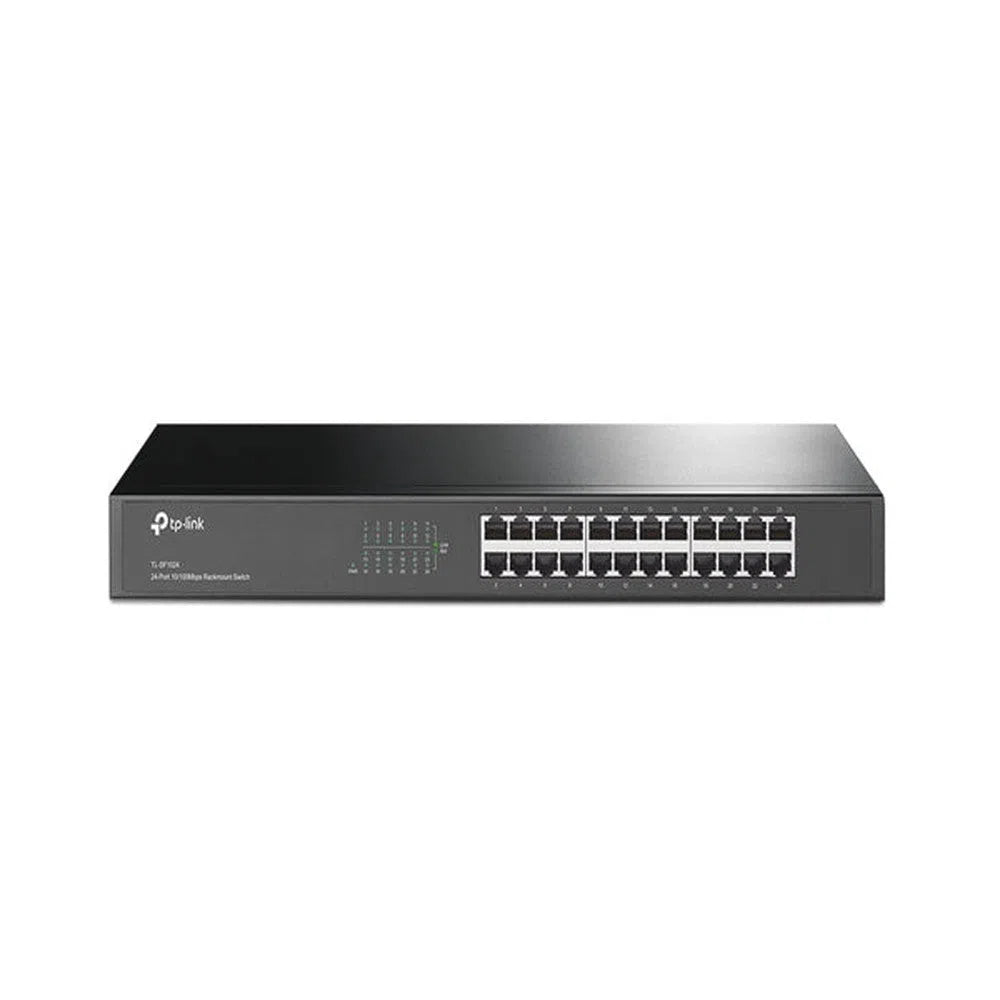

TP-Link 24-Port 10/100Mbps Rack-mount Switch - TL-SF1024
Login to buyAll 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1024 can save the power consumption and most of the packaging material can be recycled, making it an eco-friendly solution for your business network.
Features
- 24 10/100Mbps RJ45 ports
- Green Ethernet technology saves power consumption
- Supports MAC address self-learning and auto MDI/MDIX
- Standard 19-inch rack-mountable steel case
-
Vendor:
TP-Link
- Tags: Non-poe
- Description
Product Overview
The TP-Link TL-SF1024 is a 24-port unmanaged Fast Ethernet switch built for straightforward network expansion — no configuration, no software, no PoE budget to plan around. Plug it in and it works, expanding a network by 24 ports with auto-negotiation and Auto MDI/MDIX so any standard cable works in any port.
Please note this is a 10/100Mbps (Fast Ethernet) switch, not a Gigabit switch — see the Buyer Decision Tips below for what that means for your network. Its 19-inch rack-mountable steel case is fanless for silent operation, with a rackmount kit included. Supplied directly through Total Security Equipment.
Key Capabilities
24 Fast Ethernet Ports
24 × 10/100Mbps RJ45 ports with auto-negotiation and Auto MDI/MDIX.
Plug & Play, No Config
Fully unmanaged — no software, login or setup required. Connect it and it works.
19-Inch Rackmount Steel Case
Built to install straight into a standard rack, with mounting kit included.
Fanless & Energy-Efficient
Silent fanless operation, with Green Ethernet technology reducing power draw automatically.
Best For
Adds 24 ports at once — useful where you need many connections and don't need Gigabit speeds on all of them.
Suits older equipment, alarm panels, keypads and other devices that don't need or support Gigabit speeds.
Rack-mount ready steel case for equipment cabinets and comms rooms.
Why Choose This Switch
When you need a large number of ports for devices that don't demand Gigabit speeds — older equipment, alarm and access control gear, or budget-conscious expansion — the TL-SF1024 delivers 24 reliable ports at a lower cost than an equivalent Gigabit switch. Its fanless steel chassis is quiet and built to last in a comms cabinet or rack. Available from Total Security Equipment.
Buyer Decision Tips
Key Features & Technical Specifications
| Model SKU | TL-SF1024 |
| Brand | TP-Link |
| Ports | 24 × 10/100Mbps RJ45 Fast Ethernet ports (no PoE, not Gigabit) |
| Switching Capacity | 4.8Gbps |
| Forwarding Rate | 3.57 Mpps |
| MAC Address Table | 8K entries |
| Management | Unmanaged — plug and play, no configuration or software required |
| Power Supply | Internal, 100–240VAC, 50/60Hz; ≈3.2W max consumption |
| Design | Fanless, 19-inch rack-mountable steel case |
| In the Box | Switch, rackmount kit, power cable |
| Dimensions | ≈440mm × 180mm × 44mm |
| Weight | ≈2.27kg |
| Warranty | Sources vary between 3 and 5 years — confirm current warranty term with our team |
Ideal Use Cases
Alarm & Access Control Networking
Connects panels, keypads and controllers that don't need Gigabit throughput.
Legacy Equipment Networks
A cost-effective way to network older devices without paying for unused Gigabit speed.
Large Port-Count Expansion
24 ports from one switch when you need reach across many devices at once.
Comms Cabinet Installs
Rack-mount steel case fits neatly into an equipment cabinet.
FAQs
1. Is this a Gigabit switch?
No — despite the "24-port" name looking similar to our Gigabit switches, the TL-SF1024 runs at 10/100Mbps (Fast Ethernet) per port, not 1000Mbps. If you need Gigabit speeds, ask our team about the TP-Link TL-SG1016D or one of our Ruijie switches instead.
2. Does this switch supply PoE power to cameras?
No — this is a standard non-PoE switch. Ask our team about our PoE switch options if you need to power cameras directly from the switch.
3. Do I need to configure it before use?
No — it's fully unmanaged and plug-and-play. Just connect your cables and it works, with no software or login required.
4. Is it noisy?
No — it's a fanless design, so it runs silently.
5. Where can I buy this switch in Australia?
It's available directly from Total Security Equipment.
