SKU:TL-SG1005D

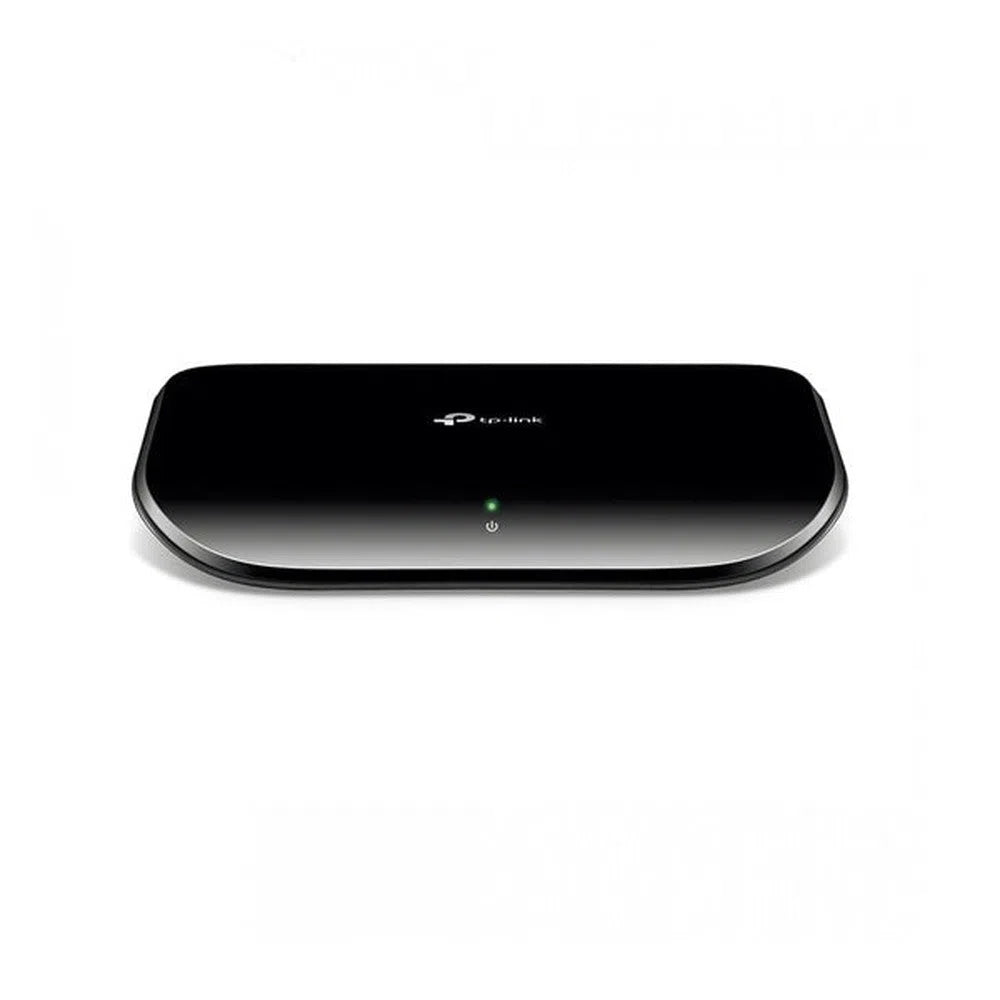

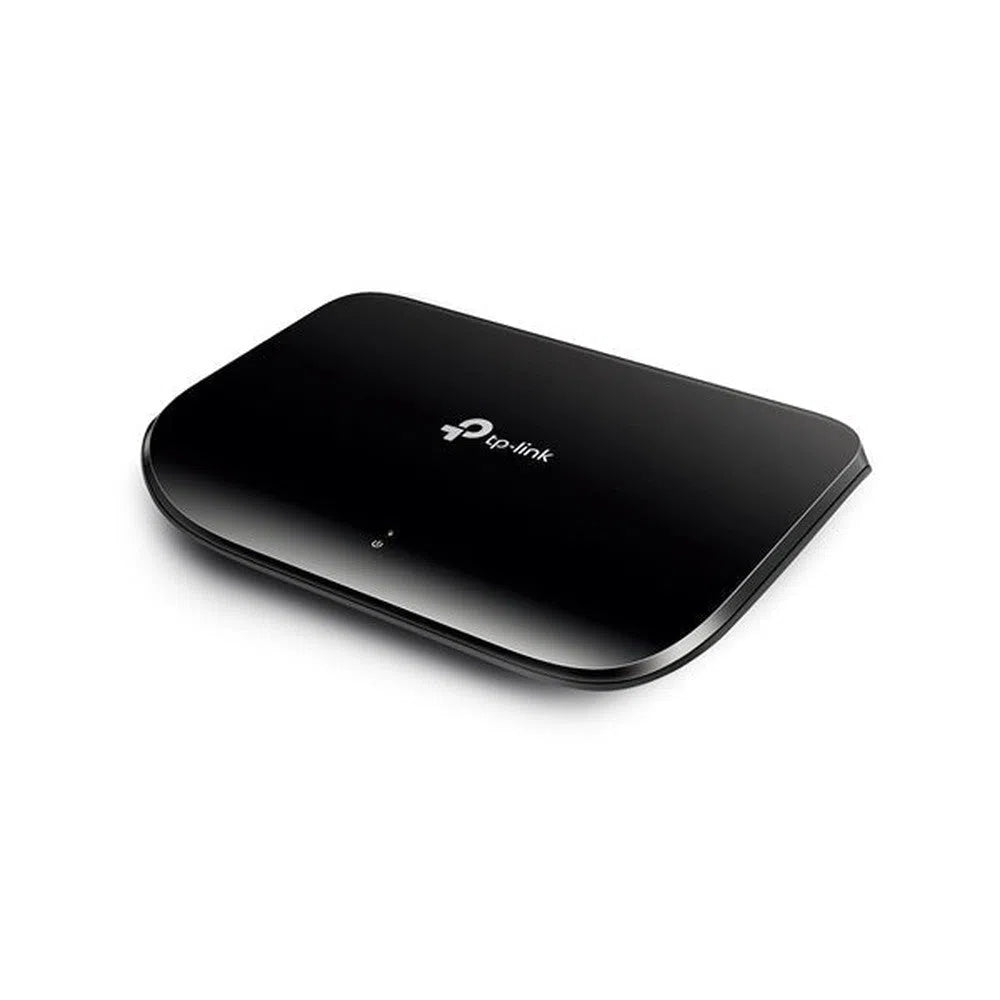

TP-Link 5 Port Gigabit Ethernet Desktop Swith - TL-SG1005D
Login to buyIncrease the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Moreover, TL-SG1005D adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG1005D can save power consumption, making it an eco-friendly solution for your home or office network.
Features:
- 5 Gigabit AutoNegotiation RJ45 ports, Supports Auto MDI / MDIX
- Green Ethernet technology saves power consumption
- IEEE 802.3x flow control provides reliable data transfer
- Plastic case, desktop or wallmounting design
- Plug and play, no configuration required
-
Vendor:
TP-Link
- Tags: Non-poe
- Description
Product Overview
The TP-Link TL-SG1005D is a compact 5-port unmanaged Gigabit switch built for simple, small-scale network expansion — a home office, a spare room, or a single equipment location that just needs a few extra Gigabit ports. Plug it in and it works, with auto-negotiation and Auto MDI/MDIX so any standard cable works in any port.
Its compact plastic case suits either desktop placement or wall-mounting, and a fanless design keeps it silent. TP-Link's Green Ethernet technology automatically reduces power draw on shorter cable runs and idle ports. Supplied directly through Total Security Equipment.
Key Capabilities
5 Gigabit Ports

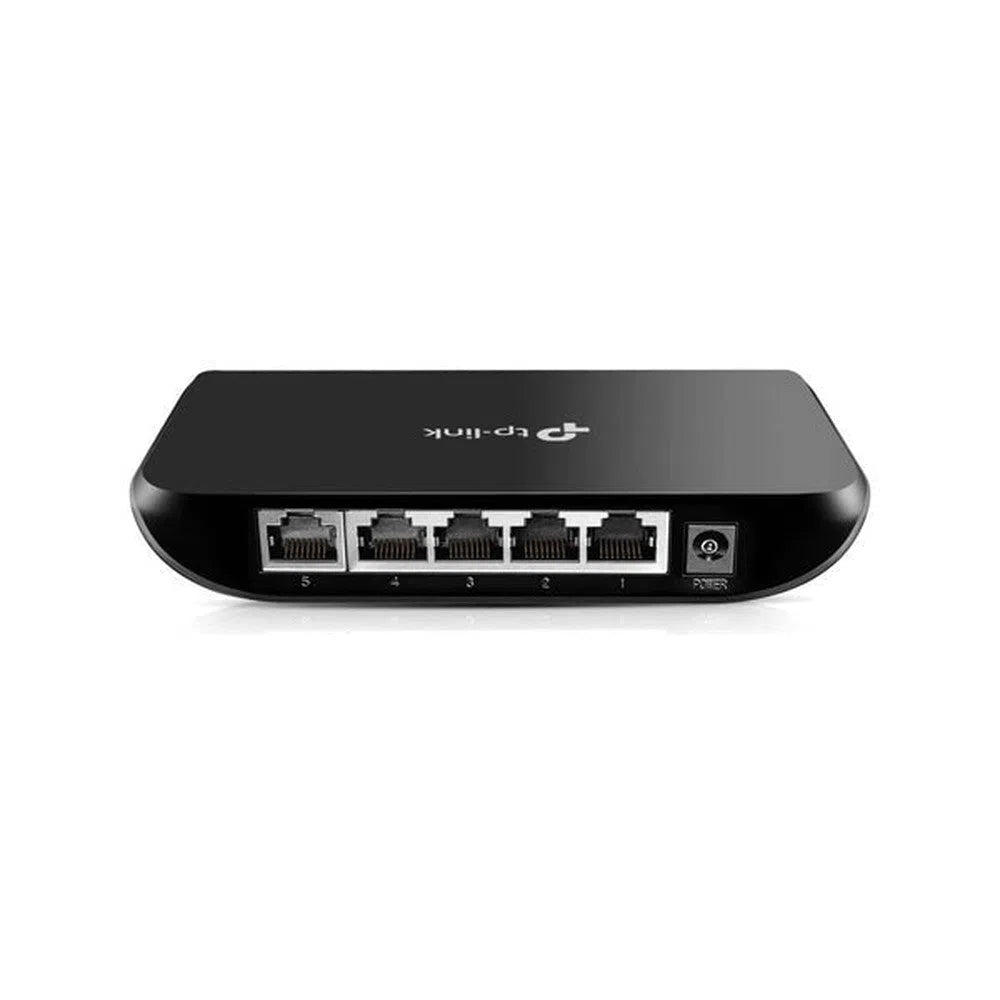

5 × 10/100/1000Mbps RJ45 ports with auto-negotiation and Auto MDI/MDIX.
Plug & Play, No Config
Fully unmanaged — no software, login or setup required. Connect it and it works.
Desktop or Wall-Mount
Compact plastic case suits a shelf, desk, or wall-mounted install.
Fanless & Energy-Efficient
Silent fanless operation, with Green Ethernet technology reducing power draw automatically.
Best For
A tidy way to add a few extra Gigabit ports without any setup.
Ideal for PCs, printers, NVRs (with separately powered cameras) and other standard network gear.
Extends a network to a single desk, room or equipment spot needing a few extra ports.
Why Choose This Switch
Not every job needs a rack-mount unit with dozens of ports — sometimes you just need a few more Gigabit connections in one spot, with zero setup. The TL-SG1005D is a small, quiet, no-nonsense way to do exactly that, backed by TP-Link's long track record in unmanaged switching. Available from Total Security Equipment.
Buyer Decision Tips
Key Features & Technical Specifications
| Model SKU | TL-SG1005D |
| Brand | TP-Link |
| Ports | 5 × 10/100/1000Mbps RJ45 Gigabit ports (no PoE) |
| Switching Capacity | 10Gbps |
| MAC Address Table | 8K entries |
| Jumbo Frame Support | Up to 15KB |
| Management | Unmanaged — plug and play, no configuration or software required |
| Power Supply | External power adapter included (exact output rating varies by hardware version — confirm with our team if you need a replacement adapter); ≈3.1W max consumption |
| Design | Fanless, plastic case, desktop or wall-mount |
| Operating Temperature | 0°C to 40°C |
| Dimensions | ≈140mm × 88mm × 23mm |
| Weight | ≈0.2kg |
| Warranty | Commonly listed as 1 year by Australian resellers — confirm current warranty term with our team |
Ideal Use Cases
Home Office Networking
Adds a few extra Gigabit ports at a desk without any setup.
Small NVR Setups
Connects a small NVR and a couple of other non-PoE devices.
Wall-Mounted Installs
Compact enough to mount out of the way in a small equipment space.
Quick Network Expansion
A simple, affordable way to add ports anywhere in a home or small office.
FAQs
1. Does this switch supply PoE power to cameras?
No — this is a standard non-PoE switch. Ask our team about our PoE switch options if you need to power cameras directly from the switch.
2. Do I need to configure it before use?
No — it's fully unmanaged and plug-and-play. Just connect your cables and it works, with no software or login required.
3. Can this be wall-mounted?
Yes — its compact plastic case is designed for either desktop or wall-mounted installation.
4. What if I need more than 5 ports?
Ask our team about the larger TP-Link TL-SG1016D (16-port) or one of our Ruijie switches, depending on whether you also need PoE.
5. Where can I buy this switch in Australia?
It's available directly from Total Security Equipment.
