SKU:50M-USB-EXTENDER

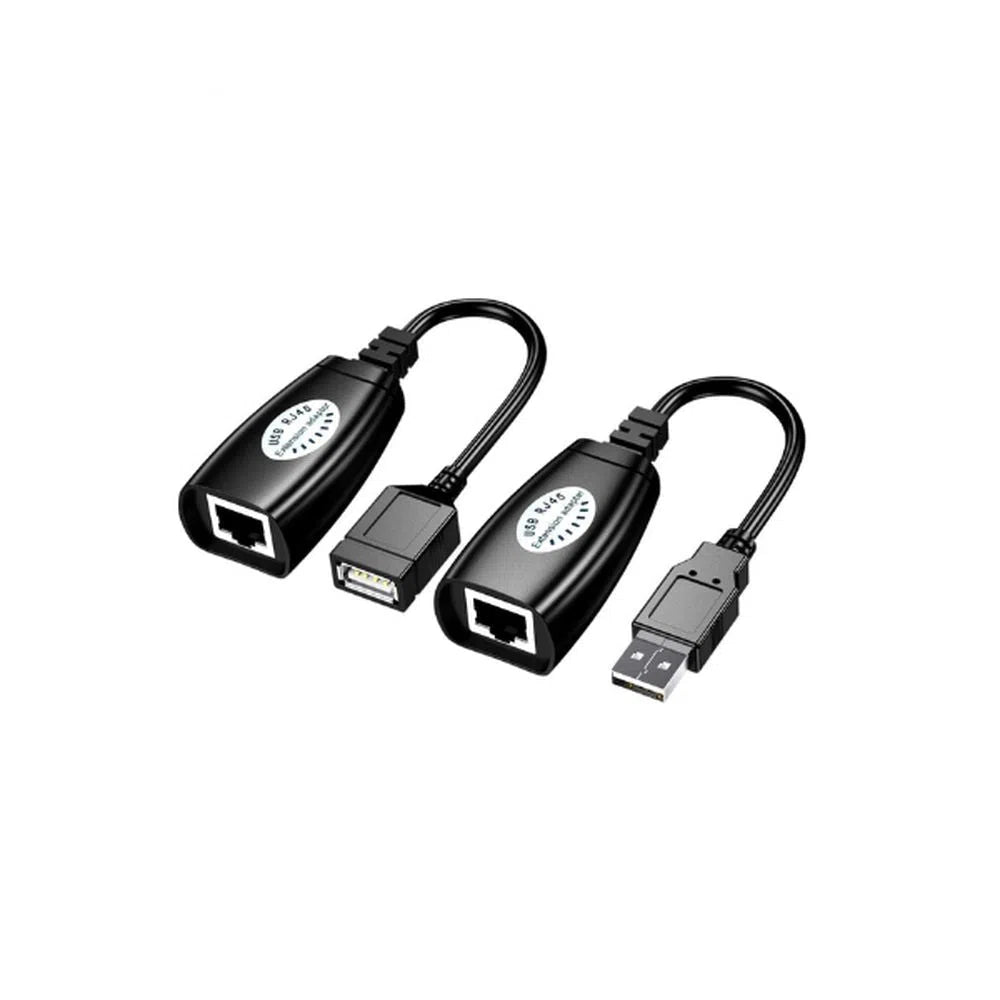

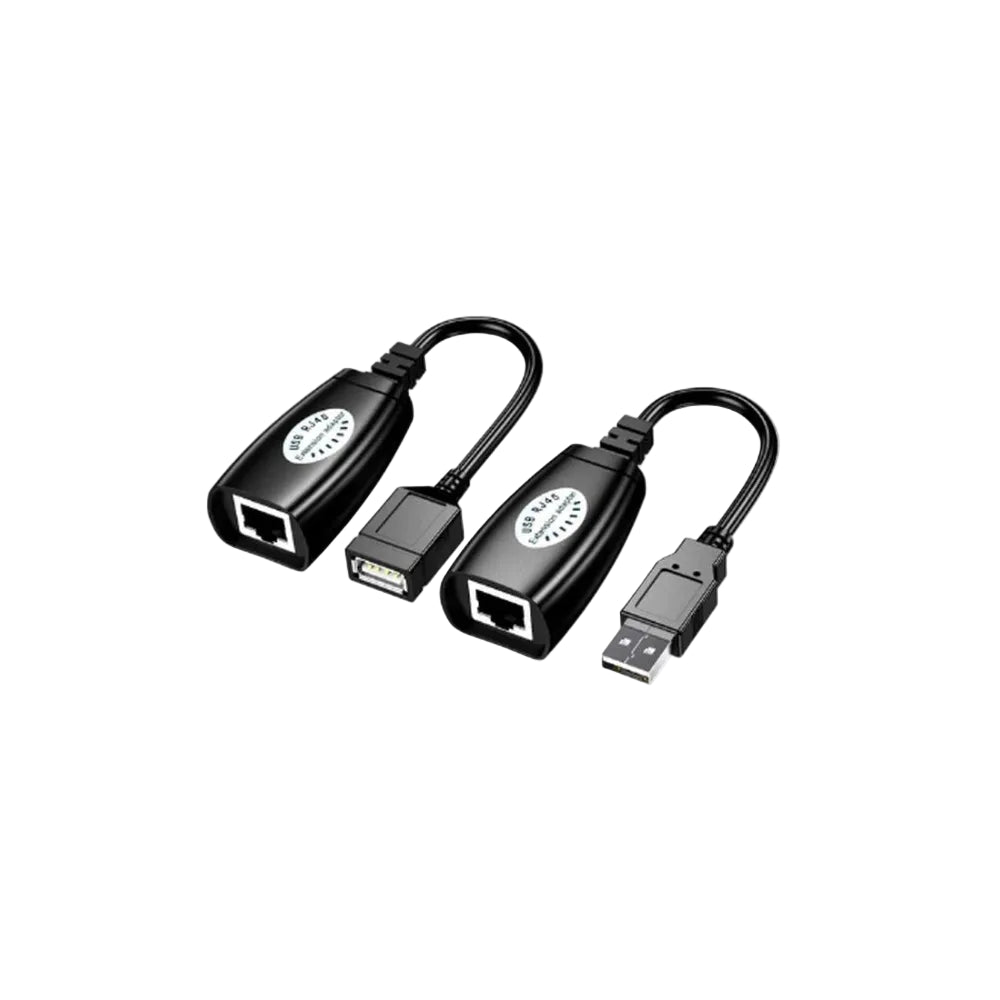

USB To RJ45 Extender 50M
Login to buyUSB (Male) To RJ45 + USB (Female) USB over Cat5/5e/6 Extension Adapter RJ45
- This USB Extension Adapter allows you to connect your USB device to your computer at a distance of up to 50M
- Package content: 1 x USB (male) to RJ45 Socket convert; 1 x USB (female) to RG45 Socket convert
- Input Interface: USB 2.0, compatible with USB 2.0,USB 1.1.Self-powered, no external power source is required, plug and play, no driver needed
- Length: 20cm
- Ideal for use with USB cameras, printers, webcams, keyboard/mouse extensions, and any other USB devices. LAN Extension Adapter can locate your USB device up to 45m away from your computer/monitor
- The CAT5/CAT5e/CAT6 USB Extender can be used to extend the distance between a USB device and a host computer by up to 45m
-
Vendor:
TotalSE
- Description
Product Overview
This USB to RJ45 extender lets you run a USB connection over standard network cabling instead of a USB cable — handy when a USB camera, printer or other peripheral needs to sit further from the host computer than a normal USB cable allows. The kit is a simple two-piece pair: one converter with a male USB plug and RJ45 socket, and a matching converter with a female USB socket and RJ45 socket, connected between them with your own CAT5, CAT5e or CAT6 cable run.
It's self-powered and plug-and-play — no external power supply or driver installation needed — and works with USB 2.0 and USB 1.1 devices. This is our shorter-range, more affordable option in the range. Supplied directly through Total Security Equipment.
Key Capabilities
Extend USB Over Network Cable
Turns a run of CAT5/5e/6 cable into a USB extension, well beyond a standard USB cable's reach.
Self-Powered, No Driver Needed
Draws power from the USB connection itself — no separate power supply, no software to install.
Simple Two-Piece Kit
One male USB/RJ45 converter and one female USB/RJ45 converter — connect your own network cable between them.
Broad USB Peripheral Support
Works with USB cameras, printers, webcams, keyboards, mice and other USB 2.0/1.1 devices.
What's Included
Plugs into your computer's USB port
Your USB device plugs into this end
The network cable run between the two converters is not included — use your own CAT5, CAT5e or CAT6 cable.
Best For
A more affordable option when you don't need our longer-range extender.
Position a USB camera away from the host computer or recorder.
Locate a printer or scanner in a more convenient spot away from the PC.
Why Choose This Extender
This extender is a simple, self-powered way to reuse standard network cabling for a USB connection, without needing an external power supply or driver install — plug it in and it works. It's our more budget-friendly option for shorter extension runs, using cable you may already have run through walls or ceilings. Available from Total Security Equipment.
Buyer Decision Tips
Key Features & Technical Specifications
| Model SKU | 50M-USB-EXTENDER |
| Product Type | Self-powered USB to RJ45 extender pair |
| USB Compatibility | USB 2.0 (backward compatible with USB 1.1) |
| Network Cable Support | CAT5, CAT5e, CAT6 (customer-supplied) |
| Rated / Practical Extension | Rated to 50m; ≈45m practical range per our own documentation — see Buyer Decision Tips |
| Converter Cable Length | 20cm (each converter's own short pigtail) |
| Power | Self-powered via USB — no external power supply required |
| Driver Requirement | None — plug and play |
| In the Box | 1 × USB male/RJ45 converter, 1 × USB female/RJ45 converter |
| Compatible Devices | USB cameras, printers, webcams, keyboards, mice and other USB 2.0/1.1 peripherals |
| Warranty | Confirm current warranty term with our team |
Ideal Use Cases
USB Camera Installs
Run a USB camera or webcam further from the recorder than a normal USB cable would allow.
Shared Office Printers
Locate a printer in a convenient central spot rather than right beside the PC.
Reusing Existing Cabling
Make use of a spare CAT5/5e/6 run already in the wall or ceiling.
Budget-Conscious Short Runs
The lower-cost option when your cable run doesn't need our longer-range extender.
Choosing the Right Extender
Choose this 50M extender if:
Your cable run is well within range and you want the more affordable option.
Choose our 100M extender instead if:
You have a longer cable run. Note that both units reference a similar practical range in our own documentation, so ask our team to confirm which is genuinely the better fit for your distance before paying the difference.
FAQs
1. Will this really reach 50 metres?
It's rated to 50m, though our own documentation for this product also notes a practical range of approximately 45m as a self-powered unit. For most installs this difference won't matter, but if your run is right at the limit, please confirm with our team first.
2. Do I need to install any drivers?
No — it's plug and play, and doesn't require an external power supply either.
3. What network cable do I need?
Any standard CAT5, CAT5e or CAT6 cable — this is not included and is run between the two converters yourself.
4. What's the difference between this and your 100M extender?
This is our lower-priced option, rated to a shorter distance. If you need a longer run, ask our team to compare both against your actual cable distance before choosing.
5. Where can I buy this extender in Australia?
It's available directly from Total Security Equipment.
