SKU:VTM22A

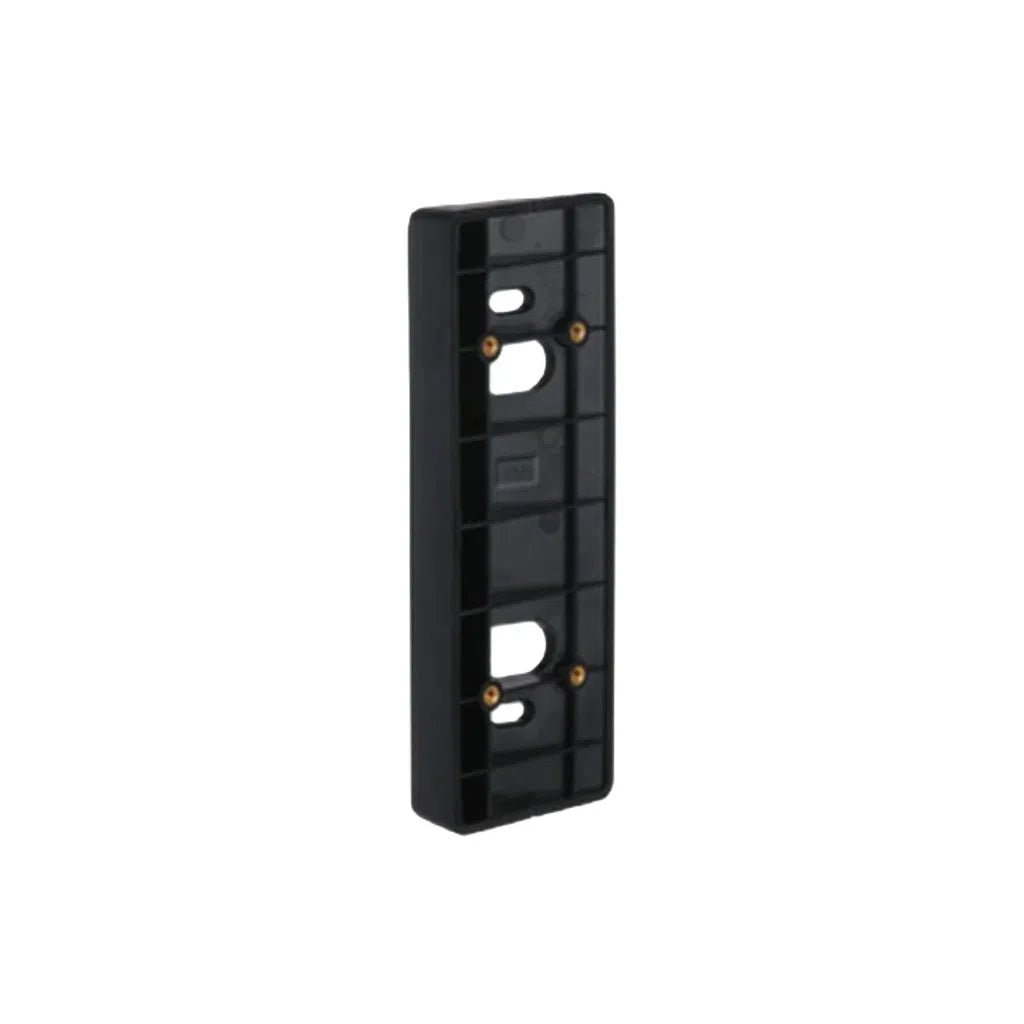

Dahua Horizontally inclined bracket for VTO1000J Door Station - VTM22A
Login to buyHorizontally inclined bracket for VTO1000J Door Station
The VTM22A intercom bracket, crafted by Dahua Technology, offers a simple solution. This bracket allows for horizontal adjustments up to 15 degrees, and you can even combine up to two brackets for even more precise positioning.
- Description
Product Overview
The Dahua VTM22A is a horizontally inclined mounting bracket for the VTO1000J-series door station, letting you angle the intercom up to 15° so visitors are framed properly even when the wall or approach path is offset. Two brackets can be combined for up to 30° of adjustment, giving installers flexibility on entrances that aren't perfectly square to the visitor's approach.
Made from durable PC + ABS plastic in a matte black finish, it's a simple, low-cost way to fine-tune camera framing without altering the wall mount itself. Supplied directly through Total Security Equipment (door station sold separately).
Key Capabilities
15° Horizontal Angle Adjustment
Angles the door station 15° per bracket to correct camera framing on offset walls or approach paths.
Stackable to 30°
Combine two brackets for up to 30° of total horizontal adjustment on more difficult entrances.
Durable PC + ABS Build
A matte black plastic housing built to hold its position and complement the door station's finish.
Purpose-Built for VTO1000J Series
Designed specifically for the Dahua VTO1000J-series door station for a precise, factory-matched fit.
Best For
Corrects camera framing when the mounting surface isn't square to the visitor's approach.
Improves visitor framing on paths, driveways, or gates that curve away from the door station.
A simple add-on for installers wanting finer control over camera angle without re-mounting.
Stack two brackets together for up to 30° of adjustment on tricky entrances.
Why Choose the Dahua VTM22A
Not every entrance faces visitors head-on. The VTM22A gives installers a simple, inexpensive way to correct camera framing on angled or offset walls, without needing to alter the mounting surface itself. Available from Total Security Equipment.
Buyer Decision Tips
Key Features & Specifications
| Model SKU | VTM22A |
| Product Type | Horizontally Inclined Mounting Bracket |
| Compatible Door Stations | Dahua VTO1000J series (incl. VTO1000JM) |
| Angle Adjustment | 15° per bracket; up to 30° with two brackets combined |
| Material | PC + ABS plastic, matte black |
| Mounting Type | Surface mount, stackable |
| Dimensions | ≈49.63mm × 136.35mm × 16.57mm |
| Weight | ≈360g (net) |
Ideal Use Cases
Curved Driveways & Paths
Angles the camera toward the actual visitor approach rather than straight ahead.
Corner & Angled Pillars
Corrects framing on gate pillars that sit at an angle to the driveway or footpath.
Retrofit Framing Fixes
A quick fix for an existing install where the door station's field of view misses visitors.
Multi-Angle Entrances
Stack two brackets for entrances with a more extreme approach angle.
Choosing the Right Accessory
Choose this bracket if…
- Your VTO1000J-series door station's camera doesn't face visitors squarely.
- You want a simple fix without re-mounting or re-cutting a wall cavity.
- You need up to 30° of adjustment by stacking two brackets.
Choose a different accessory if…
- You have a different Dahua door station model. This bracket is specific to the VTO1000J series — confirm your exact model with us first.
- You need vertical, not horizontal, angle adjustment. Ask our team about Dahua's other mounting accessories.
FAQs
1. Which door stations is this bracket compatible with?
It's designed for the Dahua VTO1000J-series door stations, including the VTO1000JM.
2. How much angle adjustment does one bracket give?
Up to 15° of horizontal adjustment. Combine two brackets for up to 30° total.
3. Can I combine multiple brackets?
Yes, up to two brackets can be stacked together for a combined 30° of horizontal angle.
4. What is it made from?
It's made from durable PC + ABS plastic in a matte black finish.
5. Where can I buy the Dahua VTM22A in Australia?
It's available directly from Total Security Equipment.
