SKU:VTNS1060A

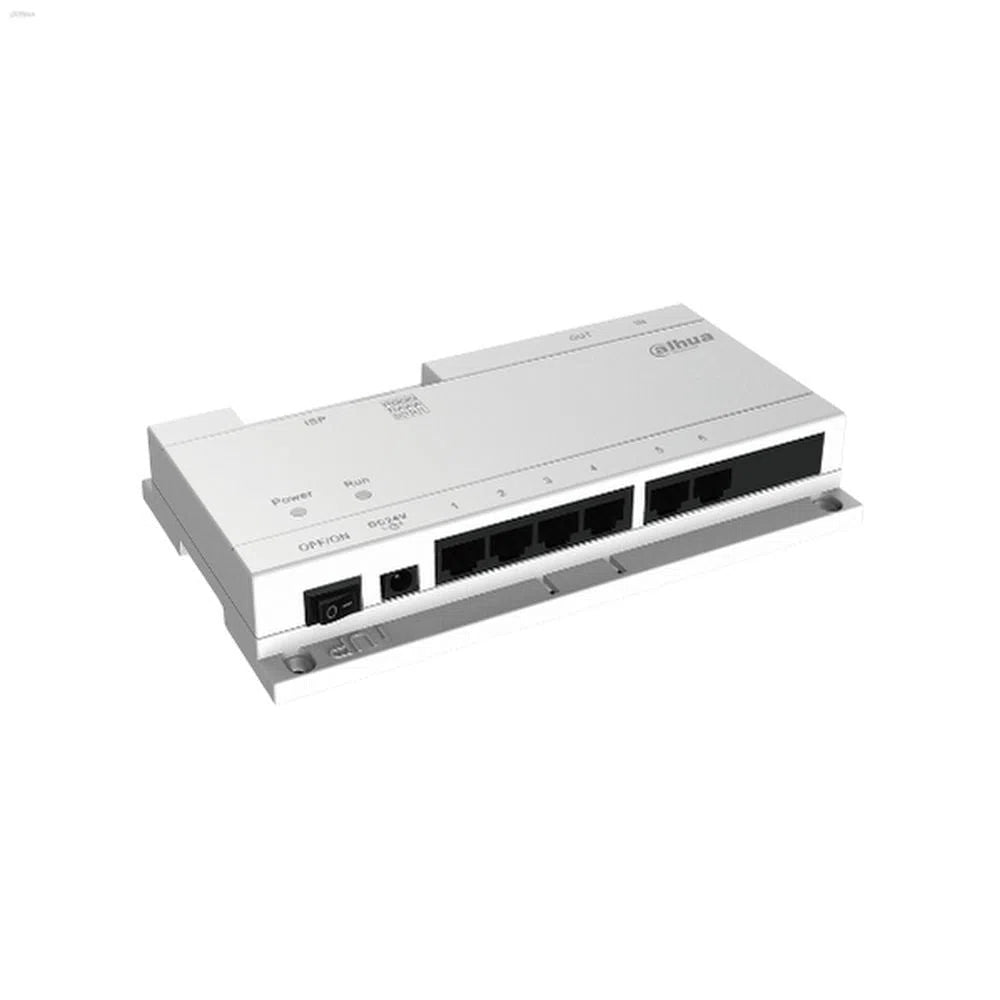

Dahua IP Switch PoE 6 Port 24V Intercom System - VTNS1060A
Login to buyFeatures
- Decent appearance
- Dahua protocol network power supply switch
- Connect max 6 indoor monitors with the Cat 5e cable, transfer the signal and power together
- For intercom system
- Comes with a power supply
- Description
Product Overview
The Dahua VTNS1060A is a 6-port network power supply switch purpose-built for Dahua IP intercom systems. It connects up to 6 indoor monitors over standard Cat 5e cable, carrying both signal and power over the same run, and comes complete with its own 24V power supply.
This is a Dahua-protocol switch, not a standard IEEE 802.3af/at PoE device — it's designed specifically to power and network compatible Dahua IP intercom monitors and is not a general-purpose PoE switch for other equipment. Supplied directly through Total Security Equipment (intercom monitors and door stations sold separately).
Key Capabilities
6-Port Capacity
Connects up to 6 compatible Dahua indoor monitors from a single switch.
Combined Power & Signal
Delivers both power and network signal to each monitor over a single Cat 5e run.
Power Supply Included
Ships with its own 24V power supply, so there's nothing extra to source.
Compact Footprint
A slim, low-profile unit that tucks easily into a comms cabinet or riser cupboard.
Best For
Powers and networks several indoor monitors from one central switch.
A tidy way to run multiple intercom monitors on shared cabling.
Compact enough to mount alongside other networking gear.
Expands or centralises power for an existing Dahua IP intercom install.
Why Choose the Dahua VTNS1060A
Running separate power to every indoor monitor adds cost and complexity. The VTNS1060A simplifies this by delivering power and signal together over Cat 5e to up to 6 monitors from one central point, with its own power supply included. Available from Total Security Equipment.
Buyer Decision Tips
Key Features & Technical Specifications
| Model SKU | VTNS1060A |
| Product Type | Dahua Protocol Network Power Supply Switch |
| Ports | Up to 6 indoor monitors via Cat 5e cable |
| Protocol | Dahua proprietary protocol (not standard IEEE 802.3af/at PoE) |
| Power Supply | 24V, included; max consumption 45W under full load, ≈0.2W standby |
| Operating Temperature | -10°C to +55°C |
| Dimensions | 178.8mm × 107.1mm × 30.3mm (L×W×T) |
| Weight | 0.3kg |
Ideal Use Cases
Multi-Room Homes
Powers indoor monitors in several rooms from one central switch and power supply.
Small Office Reception Areas
Runs multiple intercom monitors across a shopfront or reception without separate power runs.
Comms Cabinet Consolidation
Keeps intercom power and networking gear tidy in one central cabinet.
System Expansions
Adds capacity when a household or site needs more than one or two indoor monitors.
Choosing the Right Model
Choose this switch (VTNS1060A) if…
- You're running a compatible Dahua IP intercom system with matching monitors.
- You need to power and network up to 6 indoor monitors from one point.
- You want power and signal combined over a single Cat 5e run.
Choose a different model if…
- You need a standard IEEE 802.3af/at PoE switch. This is a Dahua-protocol device, not a general-purpose PoE switch — ask our team for standard PoE options.
- You need more than 6 ports. Ask our team about combining multiple switches or a higher-capacity option.
FAQs
1. Is this a standard PoE switch?
No — it uses Dahua's own network protocol, designed specifically for compatible Dahua IP intercom monitors, not general IEEE 802.3af/at PoE devices.
2. How many monitors can it power?
Up to 6 compatible indoor monitors, each connected via Cat 5e cable.
3. Does it come with a power supply?
Yes, it ships with its own 24V power supply included.
4. Will it work with any Dahua intercom monitor?
It's designed for compatible Dahua IP intercom systems. Please confirm your exact monitor and door station models and system generation with our team before ordering, as compatibility is model and generation-specific.
5. Where can I buy the Dahua VTNS1060A in Australia?
It's available directly from Total Security Equipment.
