SKU:VTO2201F-P-S2

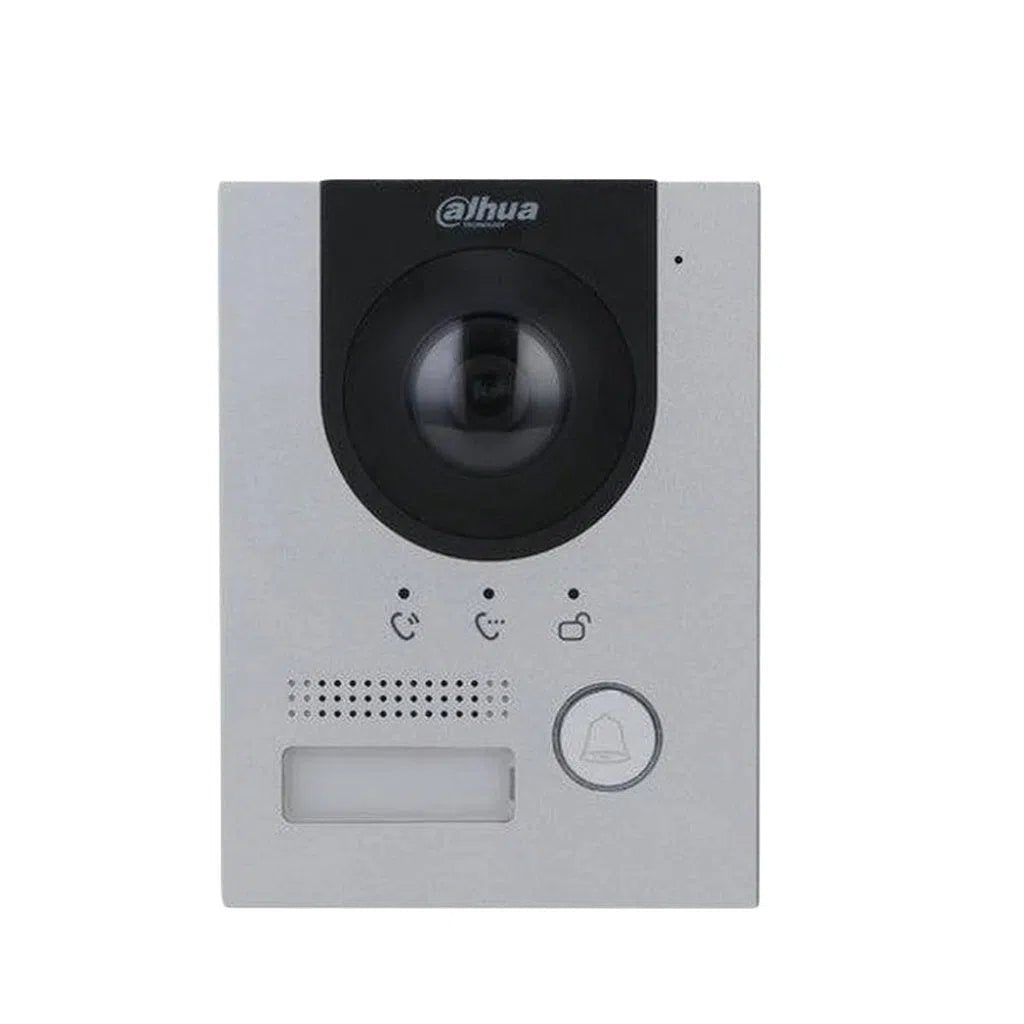

Dahua 2MP IP Villa Door Station for Intercom System - VTO2201F-P-S2
Login to buyEach IP outdoor station includes a 2 MP wide-angle camera with manual rear pivot, two-way talk and enables remote functions such as snapshot when ringing and video and audio message retrieval. The IP outdoor station is designed for single-tenant residential applications.
Features
- 2MP CMOS camera
- Mechanical button
- Night vision & voice indicator
- PoE
- 160° angle of view
- Group call
- Aluminium alloy plate
- IK07, IP65 (Apply silica gel to gaps between the device and the wall.
- Liquid sodium silicate is recommended. For details, see the quick start guide.)
- Surface mounted and flush mounted
-
Vendor:
Dahua
- Tags: Intercom
- Description
Product Overview
The Dahua DHI-VTO2202F-P-S3 is a 2MP digital 2-wire IP villa door station designed for homes, offices, gated entrances, and small commercial properties that require clear visitor video, two-way speech, and remote door release. Featuring an ultra-wide 168.6° horizontal field of view, 120dB WDR, and automatic IR day/night switching, it captures detailed entrance footage across high-contrast or backlit entryways.
Designed for maximum installation versatility, the station supports both digital 2-wire communication for legacy retrofits and standard 10/100Mbps Ethernet with PoE for new IP deployments. Its aluminum enclosure carries robust IP65 weather-resistance and IK07 impact-protection ratings, while support for two-lock control, mobile app notification, visitor video messaging, and MicroSD expansion (up to 256GB) make it an ideal entrance point. Supplied directly through Total Security Equipment.
Key Capabilities
Digital 2-Wire or IP Connection
Supports digital 2-wire communication via compatible Dahua switches as well as standard Ethernet PoE (802.3af/at), perfect for retrofits or new network builds.
Ultra-Wide 2MP Visitor Camera
A 1/2.9-inch 2MP sensor with an expansive 168.6° horizontal viewing angle, 120dB WDR, and auto IR compensation captures close-range visitors clearly.
Dual-Lock Control Capability
Controls two separate entrance locks (one primary lock directly connected, and a second lock operated via an optional secure expansion module).
Clear Two-Way Audio
Built-in mic and speaker feature echo suppression and 3D digital noise reduction for crisp conversation with indoor monitors or mobile apps.
Remote App Communication
Authorized users can receive visitor calls, view live entry video, and unlock doors remotely using the supported smartphone app.
IP65 Weather & IK07 Vandal Protection
Durable aluminum housing rated IP65 against weather ingress and IK07 for impact resistance. MicroSD slot supports up to 256GB for visitor messaging.
Best For
Single mechanical call button with wide camera coverage ideal for residential entries.
Digital 2-wire support reuses existing legacy cabling without pulling new network lines.
Manages both a pedestrian side door and a main vehicle gate from one station.
Delivers clear video verification, two-way speech, and remote app door release.
Why Choose the DHI-VTO2202F-P-S3
The Dahua DHI-VTO2202F-P-S3 provides exceptional flexibility by unifying digital 2-wire and standard IP/PoE connectivity within one device. Its 168.6° ultra-wide field of view eliminates blind spots around entry gates, while 120dB WDR handles intense morning or afternoon backlighting. Dual-lock integration, exit-button inputs, alarm outputs, and auxiliary 12V DC power output offer a complete entry solution. Available from Total Security Equipment.
Buyer Decision Tips
Key Features & Technical Specifications
| Model SKU | DHI-VTO2202F-P-S3 |
| Product Type | 2-Wire & IP Villa Door Station with Mechanical Call Button |
| Camera Sensor | 1/2.9-inch 2MP CMOS Camera |
| Field of View | Horizontal: 168.6°, Vertical: 87.1°, Diagonal: 176.7° |
| Image Enhancement | 120dB WDR, 3D Noise Reduction, Auto IR Night Vision |
| Video & Audio Codecs | H.265, H.264 (up to 25 fps); G.711a, G.711u, PCM |
| Communication Modes | Digital 2-Wire and 10/100Mbps Ethernet (IP) |
| Lock & Door Control | Supports 2 Locks (2nd lock requires secure module), 1x Exit Button, 1x Door Status |
| Interfaces | 1x RS-485, 1x Alarm Out, 12V DC (600mA) Aux Power Output |
| Storage | MicroSD slot up to 256GB (for visitor video messages) |
| Power Supply & Draw | PoE (802.3af/at), 48V DC 1A, or 2-Wire Switch (Standby ≤4W, Working ≤5W) |
| Protection Ratings | IP65 Ingress Protection, IK07 Impact Resistance (Silicone sealing required) |
| Dimensions & Weight | 130 mm x 96 mm x 28.5 mm | Gross weight: 0.48 kg |
Ideal Use Cases
Residential Villa & Home Entrances
Provides high-definition visitor video, clear speech, and single-button calling for primary doorways.
Retrofit Intercom Upgrades
Reuses existing 2-wire cabling infrastructure without requiring costly network recabling.
Dual-Gate Entrances
Operates both a pedestrian entry door and a vehicle access gate using the secondary lock expansion module.
Remote Visitor Handling
Allows property owners to answer calls, view video, and unlock doors from anywhere using their smartphone app.
Choosing the Right Model
Choose this model (DHI-VTO2202F-P-S3) if…
- You need dual-capability for either digital 2-wire or IP PoE cabling.
- You require an ultra-wide 168.6° field of view to cover close-up entry points.
- You want remote mobile app call answering and dual-lock unlocking.
Choose a different model if…
- You need keycard or PIN access on the panel. Select a door station equipped with an integrated card reader or mechanical keypad.
- You are equipping a multi-apartment complex. Large multi-tenant buildings require multi-button or digital directory apartment stations.
FAQs
1. Does the DHI-VTO2202F-P-S3 support both 2-wire and standard IP connections?
Yes, it supports digital 2-wire communication via compatible Dahua switches as well as standard 10/100Mbps Ethernet with IEEE 802.3af/at PoE power.
2. How broad is the camera's field of view?
The 2MP camera provides an ultra-wide 168.6° horizontal, 87.1° vertical, and 176.7° diagonal field of view, ideal for capturing visitors close to the door.
3. Can this station control two separate doors or gates?
Yes. It connects one primary lock directly and supports a second lock output via a compatible secure control module.
4. Can it be surface mounted or flush mounted?
Both surface mounting and flush recessed mounting are supported using dedicated optional Dahua mounting accessories.
5. What local video storage is supported?
It features a MicroSD card slot supporting up to 256GB for recording visitor video messages and snapshots.
6. Where can I buy the Dahua DHI-VTO2202F-P-S3 in Australia?
The Dahua DHI-VTO2202F-P-S3 is available directly from Total Security Equipment.
