SKU:VTO6221E-P

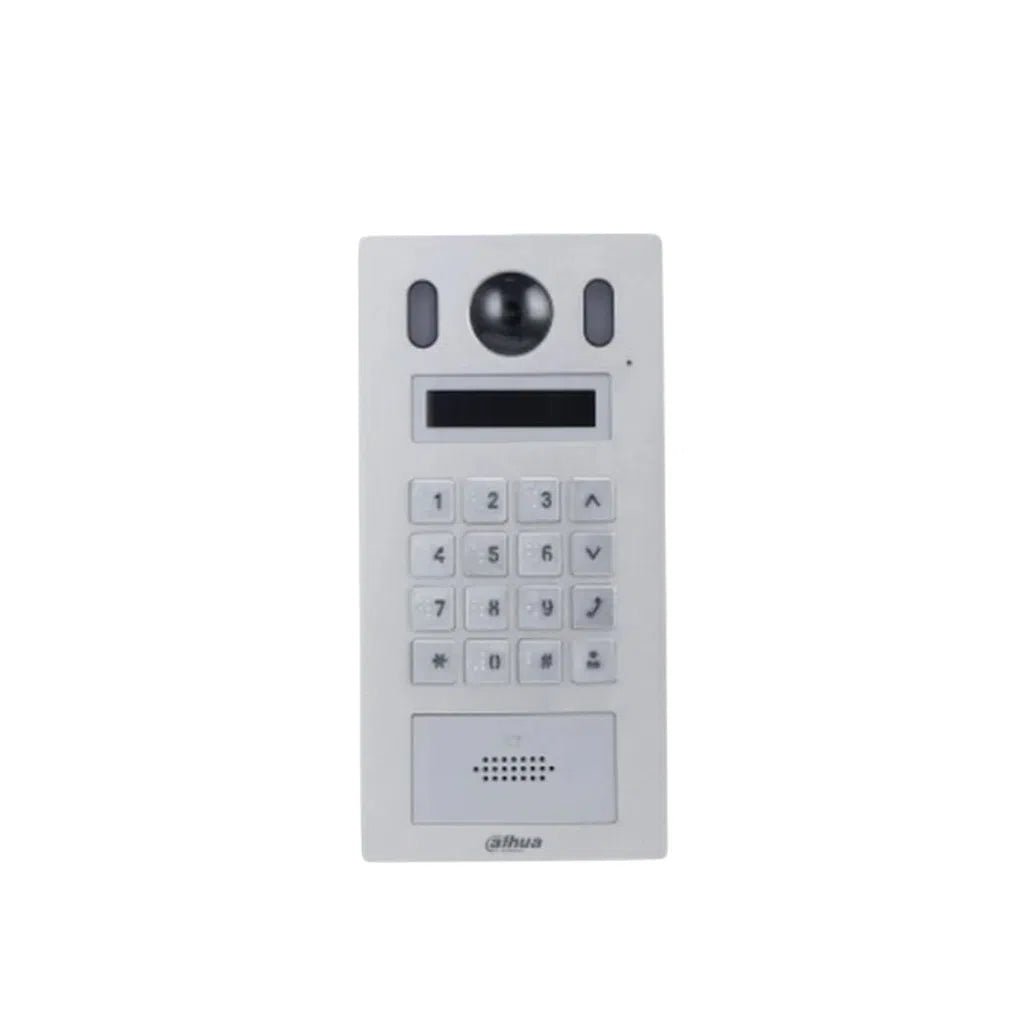

Dahua VTO6221E-P Apartment IP Outdoor Station
Login to buyThis vandal-resistant unit features a 2MP camera with wide viewing angles and night vision, accessible via the Dahua mobile app, a dedicated indoor monitor (VTH, sold separately), or a Mifare card reader. For added security, it connects to electric locks for remote unlocking. Recordable video and audio messages enhance security, and the station can be integrated with Dahua's NVR system for expanded surveillance.
Features
- Small size apartment door station
- Supplemental lighting with white light
- 2MP CMOS camera
- Mechanical button with Braille
- Aluminium alloy plate, IP55, IK08
- Door release via password and Mifare card
- Description
Product Overview
The Dahua DHI-VTO6221E-P is an IP apartment door station engineered for controlled residential, strata, and shared-building entrances. Its integrated 2MP camera uses a wide 2mm lens to capture clear visitor footage close to the doorway, while supplemental white light illumination ensures optimal visibility in low-light entrance areas.
Residents and authorized users can release the connected lock via password entry or a compatible 13.56MHz Mifare access card using the mechanical keypad with Braille markings. Featuring a 2.3-inch OLED display, built-in omnidirectional microphone, and speaker for two-way audio, this aluminum station supports PoE or 12V DC power alongside surface and flush mounting options. Incorporating relay, door-feedback, exit-button, RS-485, Wiegand, and alarm interfaces, it provides complete access control integration. Note: This model is listed as discontinued; verify current stock and system compatibility prior to purchase.
Key Capabilities
Wide-Angle Visitor Video
A 1/2.9-inch 2MP CMOS sensor with a 2mm lens captures a wide 140° horizontal and 82° vertical FOV to easily view off-center visitors.
Two-Way Visitor Communication
An omnidirectional microphone and integrated speaker enable clear real-time voice communication with compatible indoor intercom endpoints.
Password & Card Access
Combines a mechanical Braille-marked keypad for PIN entry with an onboard 13.56MHz reader for contactless Mifare card access.
Comprehensive Control Interfaces
Equipped with 1 relay output, RS-485, door feedback, exit-button input, Wiegand input, plus 1 alarm input and 1 alarm output.
PoE or 12V DC Power
Supports IEEE 802.3af PoE for single-cable data and power transmission, or conventional 12V DC (2A) local power setups.
Vandal & Weather Resistance
Features a durable aluminum faceplate with IP55 weather ingress protection, IK08 impact resistance, and an integrated tamper switch.
Best For
Consolidates visitor video, two-way speech, and electronic door release into a single shared entrance station.
Eliminates separate wall readers by combining password release and 13.56MHz Mifare swiping onboard.
Flexibly supports both surface mounting (VTM117) and low-profile flush mounting (VTM116-01).
Ideal as a direct replacement component for established, compatible Dahua IP intercom setups.
Why Choose the DHI-VTO6221E-P
The Dahua DHI-VTO6221E-P offers an all-in-one entrance management solution for multi-tenant and commercial entryways. Compared to basic call buttons, it adds a 2MP wide-angle lens, supplemental white light, a 2.3-inch OLED display, and a Braille keypad. Onboard Wiegand, RS-485, and alarm I/O connections provide expansive integration options beyond typical video doorbells, while PoE connectivity streamlines installation cable runs.
Buyer Decision Tips
Key Features & Technical Specifications
| Model SKU | DHI-VTO6221E-P |
| Product Type | IP Apartment Outdoor Door Station |
| Camera Sensor | 1/2.9-inch 2MP CMOS with Supplemental White Light |
| Lens & Field of View | 2mm Lens (Horizontal: 140°, Vertical: 82°) |
| Display & Keypad | 2.3-inch OLED Screen; Mechanical Keypad with Braille |
| Access Control | PIN Password & 13.56MHz Mifare Card Reader |
| Audio & Video Compression | Omnidirectional Mic & Speaker (G.711); H.264 Video |
| Interfaces | 1 Relay, 1 RS-485, 1 Door-Feedback, 1 Exit Button, 1 Wiegand In, 1 Alarm In, 1 Alarm Out |
| Internal Storage | MicroSD slot up to 64GB (Reserved for software only) |
| Power Supply | IEEE 802.3af PoE or 12V DC, 2A (Standby ≤2W, Working ≤7W) |
| Protection & Tamper | IP55 Ingress Protection, IK08 Impact Resistance, Tamper Switch |
| Operating Range | -40°C to +60°C; 20%–95% RH |
| Dimensions & Weight | 200 mm x 98 mm x 32 mm | Approx. 1.5 kg |
Ideal Use Cases
Apartment Lobby Entrances
Provides clear video, two-way audio, and keycard/PIN access for residents and visitors at shared entries.
Office Building Reception
Enables reception staff to verify visitor identities via video endpoint before granting electronic door release.
Strata & Mixed-Use Facilities
Serves multi-tenant commercial suites or residential strata properties requiring localized code/card access.
Compatible System Replacements
Serves as a direct replacement component for established Dahua IP intercom deployments requiring matching hardware.
Choosing the Right Model
Choose this model (DHI-VTO6221E-P) if…
- You are replacing or servicing an existing, compatible Dahua IP intercom installation.
- You require PIN password entry, Mifare card access, and wide-angle 2MP visitor video.
- You need the option to choose between surface mounting (VTM117) or flush mounting (VTM116-01).
Choose a different model if…
- You are designing a brand-new installation. Consider current-generation models to ensure long-term product availability and future system expansion.
- You require high-exposure weatherproofing. Entrances exposed to driving rain or heavy washdowns should select an outdoor station with a higher ingress rating than IP55.
FAQs
1. Is the Dahua DHI-VTO6221E-P suitable for apartment building entrances?
Yes, it is specifically designed for shared apartment entrances, combining a 2MP camera, keypad, Mifare card reader, two-way audio, and relay door control in one compact unit.
2. How can authorized users unlock the door?
Users can release the connected lock by entering a PIN password on the mechanical keypad or by presenting a compatible 13.56MHz Mifare access card.
3. Can the door station be surface mounted or flush mounted?
Both options are supported using official accessories: the VTM117 mounting box for surface installation or the VTM116-01 box for recessed flush mounting.
4. Can the VTO6221E-P be powered via Power over Ethernet (PoE)?
Yes, it supports standard IEEE 802.3af PoE for power and network data over a single Ethernet cable, or it can be powered by a local 12V DC (2A) supply.
5. What is the camera viewing angle and lighting capability?
The 2MP camera features a 2mm lens providing a wide 140° horizontal and 82° vertical viewing angle, supported by built-in white-light illumination for low-light conditions.
6. Is the Dahua DHI-VTO6221E-P discontinued?
Yes, Dahua lists this model as end-of-life. Stock availability and system compatibility should be verified prior to ordering.
