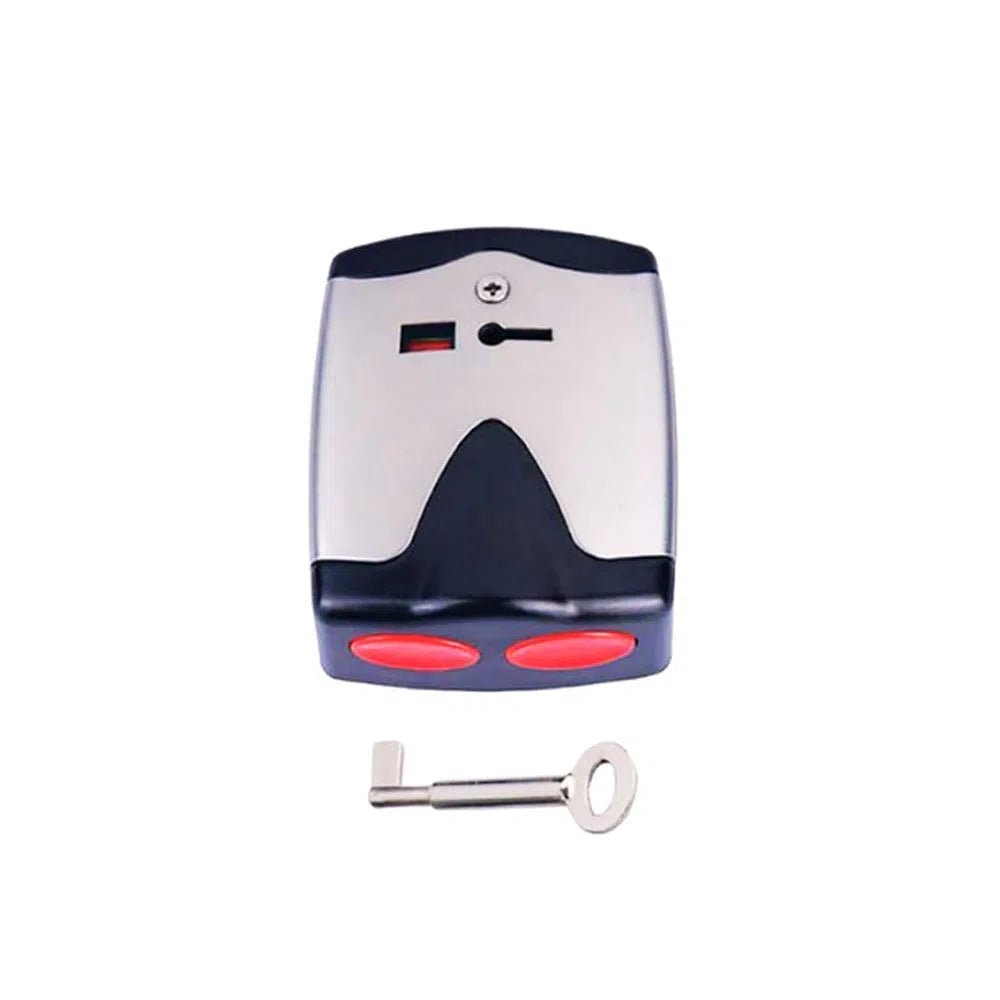

Dual Press Holdup, Panic Button Latching - WEB200

Single and Dual Press key resettable panic buttons for emergency and non-emergency applications.

Features

• Innovative patented design allows for easy interchange between latching and momentary settings x WEB200A – latching x WEB200C – momentary, also convertible between momentary and latching
• EOL resistors included for both alarm and tamper output
• Wide range of selectable EOL resistor values to suit most alarm panels
• Back and front tamper protection
• Two sets of EOL resistor values selectable via DIP switch x 0, 1k, 2k, 3.3k 4.7k, 5.6k, 6.8k, 7.9k (part number: WEB200-1) x 0, 1k, 3.3k, 4.3k, 6.8k, 7.8k, 10k (part number: WEB200-2)
