SKU:RG-ES209GC-P

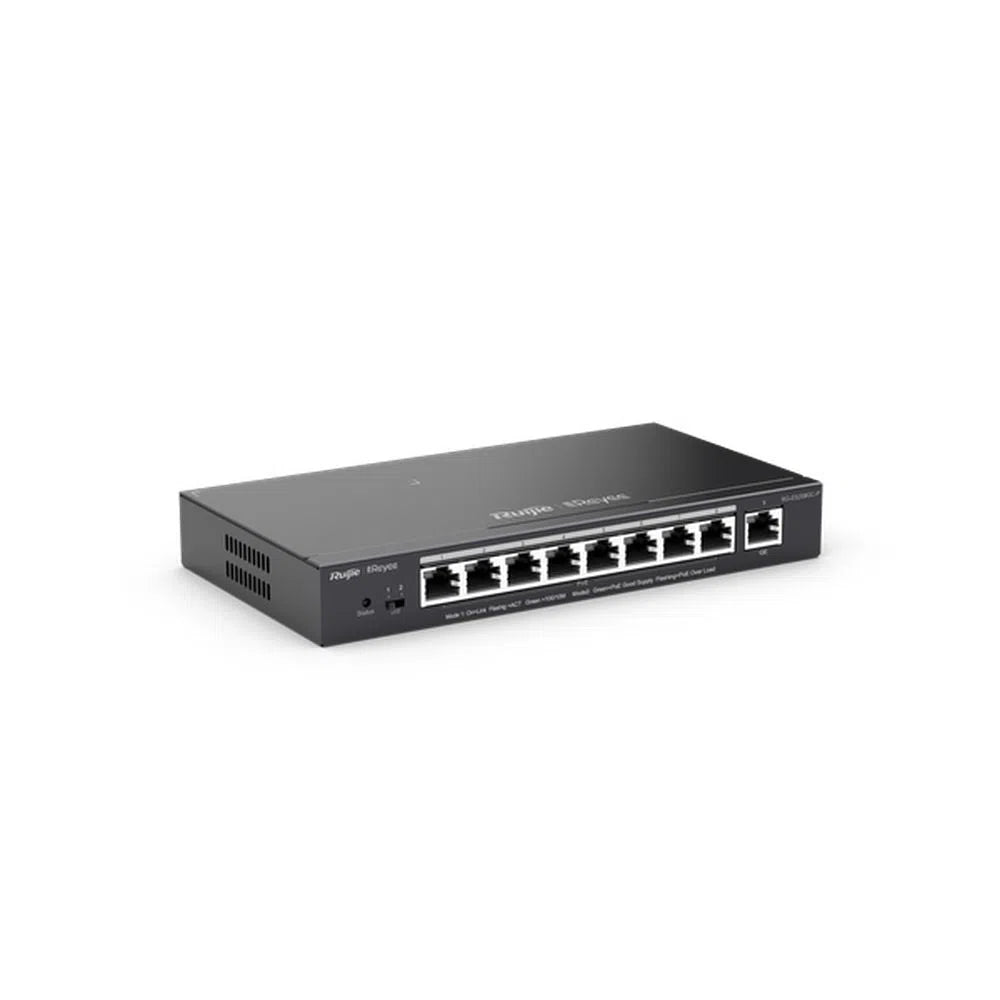

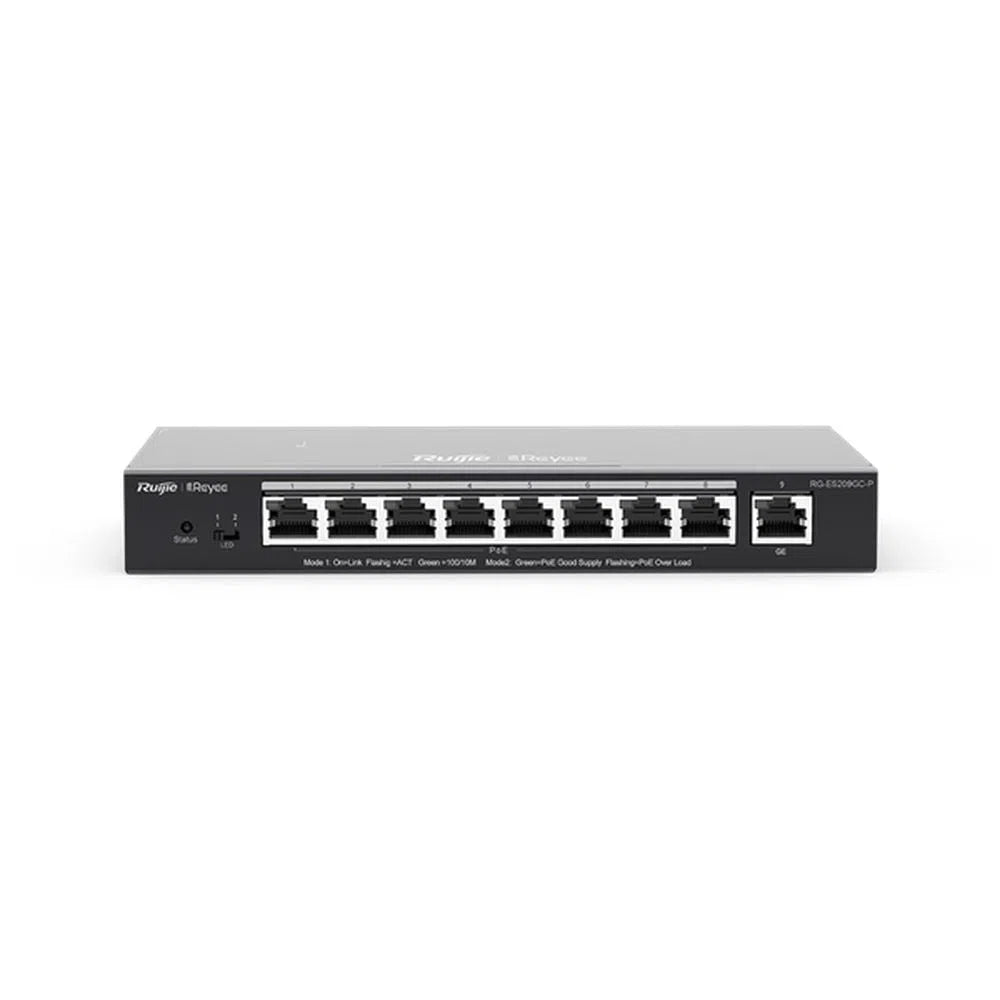

Ruijie RG-ES209GC-P PoE+ Switch
Login to buyFeatures
- 9-Port gigabit cloud managed switch with 8 PoE+ ports
- Cost-Effective Smart Cloud Managed Switches
- IP Camera Recognition, Unique Value for CCTV Network
- Automatic Loop Prevention Ensures Service Continuity
- Lifetime management on Ruijie Cloud at anytime anywhere
-
Vendor:
Ruijie
- Tags: Poe
- Description
Product Overview
The Ruijie RG-ES209GC-P is a 9-port Gigabit smart cloud-managed switch with 8 PoE+ ports, purpose-built for larger CCTV networks. It's designed to power and network IP cameras directly, with built-in IP camera recognition that identifies connected cameras and NVRs, and automatic loop prevention (RLDP) to keep the network running if a cable is accidentally looped back on itself.
Being cloud-managed means you can monitor and configure the switch remotely via the Ruijie Cloud platform — useful for installers managing multiple sites, or for checking on a system without a truck roll. This is the larger sibling to our 5-port RG-ES205GC-P, giving you double the PoE ports for bigger camera runs. Supplied directly through Total Security Equipment.
Key Capabilities
9 Gigabit Ports, 8 PoE+
8 PoE+ (802.3at/af) ports for cameras, plus 1 Gigabit uplink port to your NVR, router or main network.
120W PoE Budget
Up to 30W available per port under 802.3at, shared from a 120W total budget across all 8 PoE ports.
IP Camera Recognition
Automatically identifies connected IP cameras and NVRs — a feature built specifically for CCTV networks.
Ruijie Cloud Management
Free lifetime remote management and monitoring via the Ruijie Cloud platform, from anywhere.
Best For
Powers and networks up to 8 IP cameras from one compact switch.
Installers can check on and configure the switch remotely via Ruijie Cloud.
More headroom than a 5-port switch, without stepping up to full rack-mount gear.
Why Choose This Switch
A dedicated CCTV-oriented switch does more than a generic unmanaged one — the RG-ES209GC-P recognises connected IP cameras, protects the network from accidental loop-backs, and can be checked on remotely through Ruijie Cloud without a site visit. With 8 PoE+ ports and a 120W shared budget, it's a purpose-built way to power a mid-size camera run from a single point without needing a second switch. Available from Total Security Equipment.
Buyer Decision Tips
Key Features & Technical Specifications
| Model SKU | RG-ES209GC-P |
| Brand | Ruijie (Reyee) |
| Ports | 9 × 10/100/1000BASE-T Gigabit ports total; 8 × PoE+ ports plus 1 × Gigabit uplink |
| PoE Standard | IEEE 802.3at (PoE+) / 802.3af, up to 30W per port, 120W total PoE budget |
| Switching Capacity | 18Gbps |
| Forwarding Rate | 13.4 Mpps |
| Power Adapter | External DC adapter, 54V DC / 2.4A max, 100–240VAC input |
| Management | Ruijie Cloud (remote), free lifetime management; local smart-managed configuration also supported |
| Key Features | IP camera/NVR recognition, automatic loop prevention (RLDP), port isolation, PoE watchdog, individual port reboot, 250m extended transmission mode, fanless design |
| Operating Temperature | 0°C to 40°C |
| Dimensions | ≈202mm × 108mm × 28mm (unit only — see note below) |
| Weight | ≈0.53kg (unit only — see note below) |
| Warranty | Commonly listed as 3 years by Ruijie — confirm current warranty term with our team |
Note: Ruijie's own sources show two different sets of dimensions/weight for this model — we've used the datasheet's unpackaged-unit figures above as the more likely accurate physical size (consistent with the compact desktop form factor of the smaller 5-port model in this range). Please confirm exact dimensions with our team if you need them for a tight installation space.
Ideal Use Cases
Mid-Size IP Camera Systems
Powers and networks up to 8 PoE IP cameras from a single compact switch.
Multi-Site Installers
Ruijie Cloud lets you check on and manage several installs remotely.
Small Business CCTV
A purpose-built way to run a fuller camera set without a full rack-mount switch.
Comms Cabinet Upgrades
Fanless and compact enough to slot into an existing cabinet alongside other gear.
Choosing the Right Ruijie Switch
RG-ES209GC-P (this product)
9 ports, 8 PoE+, 120W budget. Choose this for up to 8 cameras from one switch.
RG-ES205GC-P
5 ports, 4 PoE+, 54W budget. Choose this for a smaller job, at a lower price point.
FAQs
1. How many cameras can this power?
Up to 8 PoE+ cameras, using the 8 dedicated PoE ports, plus a separate uplink port to your NVR or router. The total PoE budget is 120W shared across those 8 ports, so check your cameras' combined power draw.
2. Do I need a Ruijie Cloud account to use it?
No — the switch works locally without one. A free Ruijie Cloud account is only needed if you want to monitor or configure it remotely over the internet.
3. Does it come with a power adapter?
Yes — it's supplied with its own external DC power adapter (100–240VAC input, so it works on Australian mains).
4. What's the difference between this and the 5-port model?
This model has double the PoE ports (8 vs 4) and a much larger 120W PoE budget vs 54W, letting you power more cameras from a single switch. Ask our team if you're not sure which size fits your setup.
5. Where can I buy this switch in Australia?
It's available directly from Total Security Equipment.
