SKU:GS105

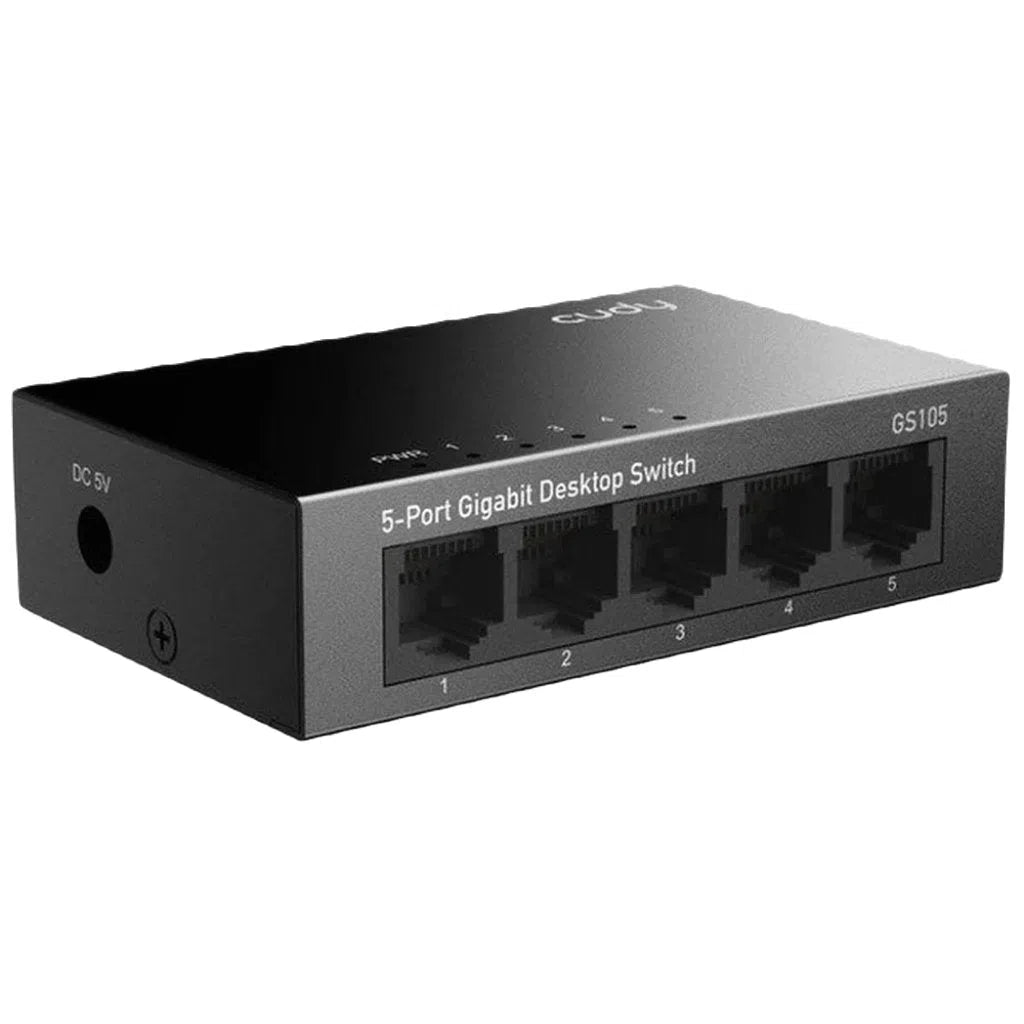

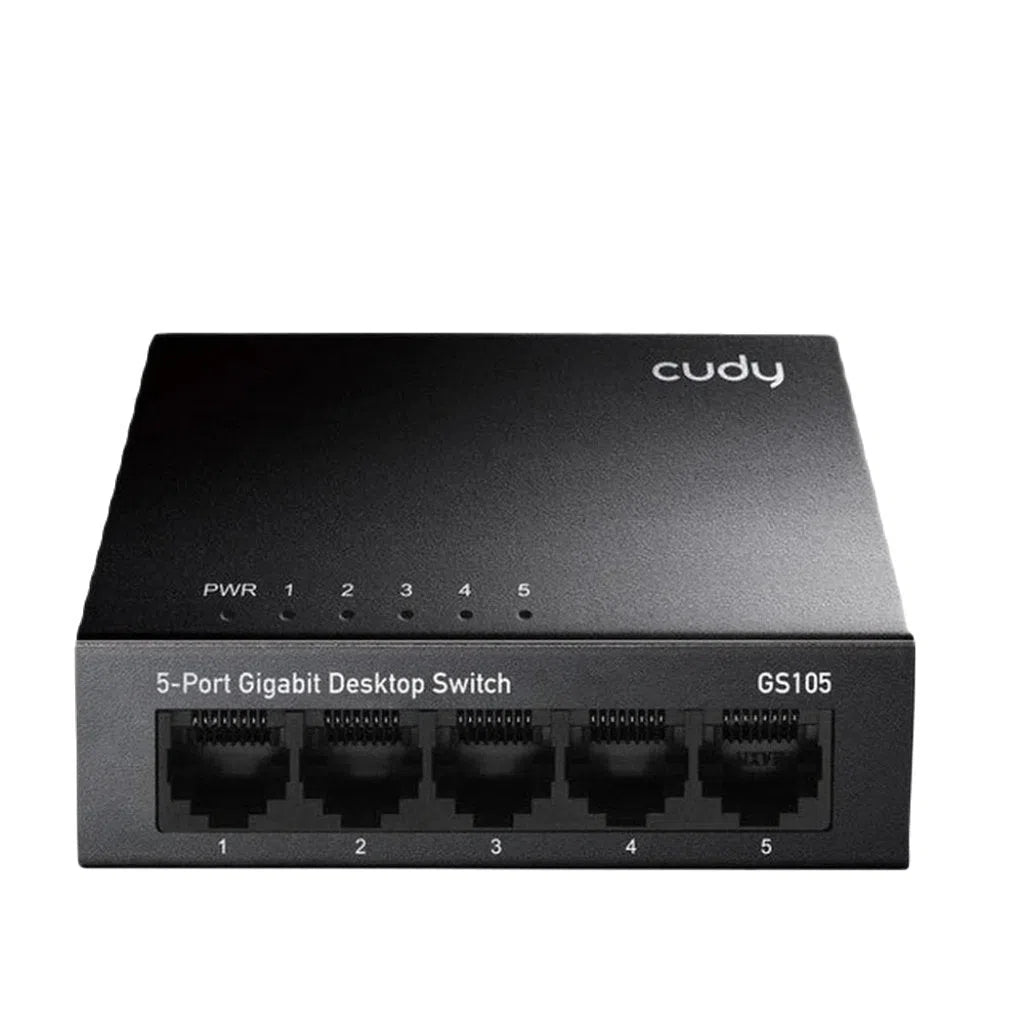

Cudy 5-Port Gigabit Desktop Switch

Name: Cudy 5-Port Gigabit Desktop Switch
Brand: Cudy
SKU: GS105
Price: 30.0 AUD
Availability: InStock

Heading

Extended Technical Support Available!

Fast responses on all orders!

Features:

Complies with IEEE 802.3, IEEE 802.3u, IEEE802.3x and IEEE 802.3ab standards
5 10/100/1000Mbps Auto-Negotiation, Auto-MDI/MDIX ports provide smart switching between 10Mbps, 100Mbps and 1000Mbps hardware
Non-blocking switching architecture enables full wire-speed packets forwarding and filtering
Store-and-Forward switching method
Supports 16K MAC address auto-learning and auto-gain

Model	GS105
Standard configurati	5 10/100/1000M RJ-45 adaptive ports
Switching Capacity	10Gbps
Throughput	7.44Mpps
Packet Buffer	1M
MAC Address	1K
Jumbo Frame	2K
Transfer Mode	Store and forward
MTBF	100000 hour
Network protocol	IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX) IEEE802.3ab (1000Base-TX) IEEE802.3x (Flow control)
Network Medium	10Base-T : Cat3,4,5 or above UTP(≤100m) 100Base-TX : Cat5 or above UTP(≤100m) 1000Base-TX : Cat5 or aboveUTP(≤100m)
Working Environment	Working Temperature：-10~50°C Storage Temperature：-40~70°C Working Humidity ：10%~90%，non-condensing Storage Temperature：5%~90%，non-condensing Working Height：Maximum10,000 feet Storage heigh：Maximum 10,000 feet
Structure Size	Product Size：875423mm Product Net-Weight：0.2kg Product Gross-Weight：0.4kg
Power Voltage	Power Input Voltage ：AC 100-240 V Switch Input Voltage:：DC 5V
