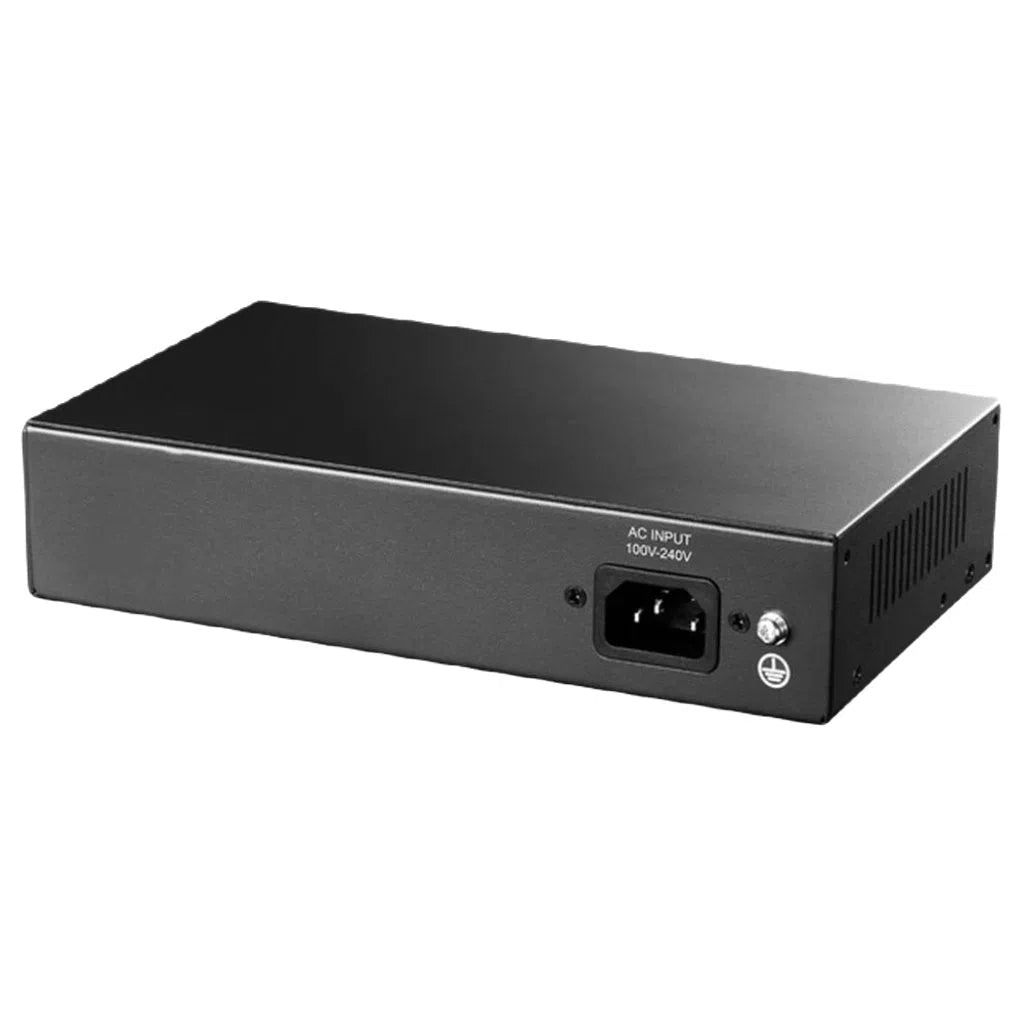

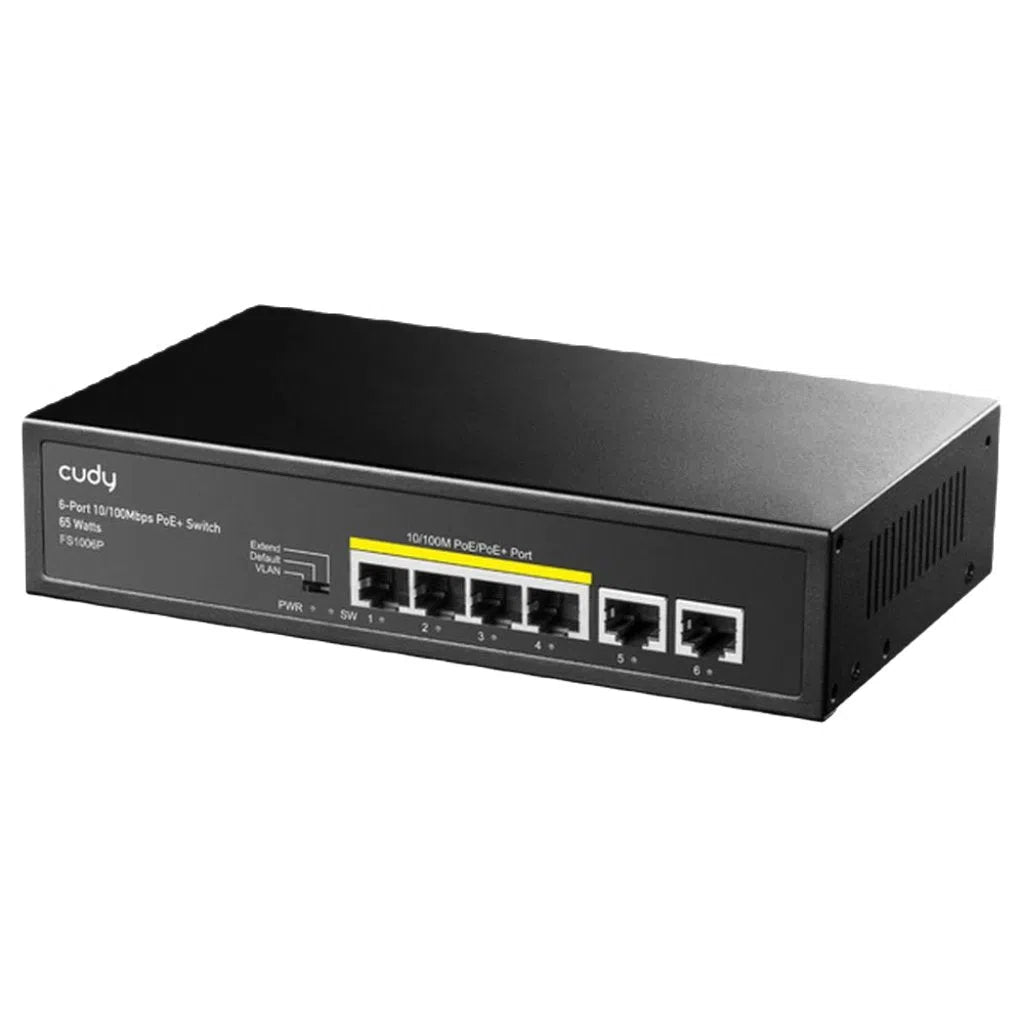

Cudy 6-Port 10/100M PoE+ Switch

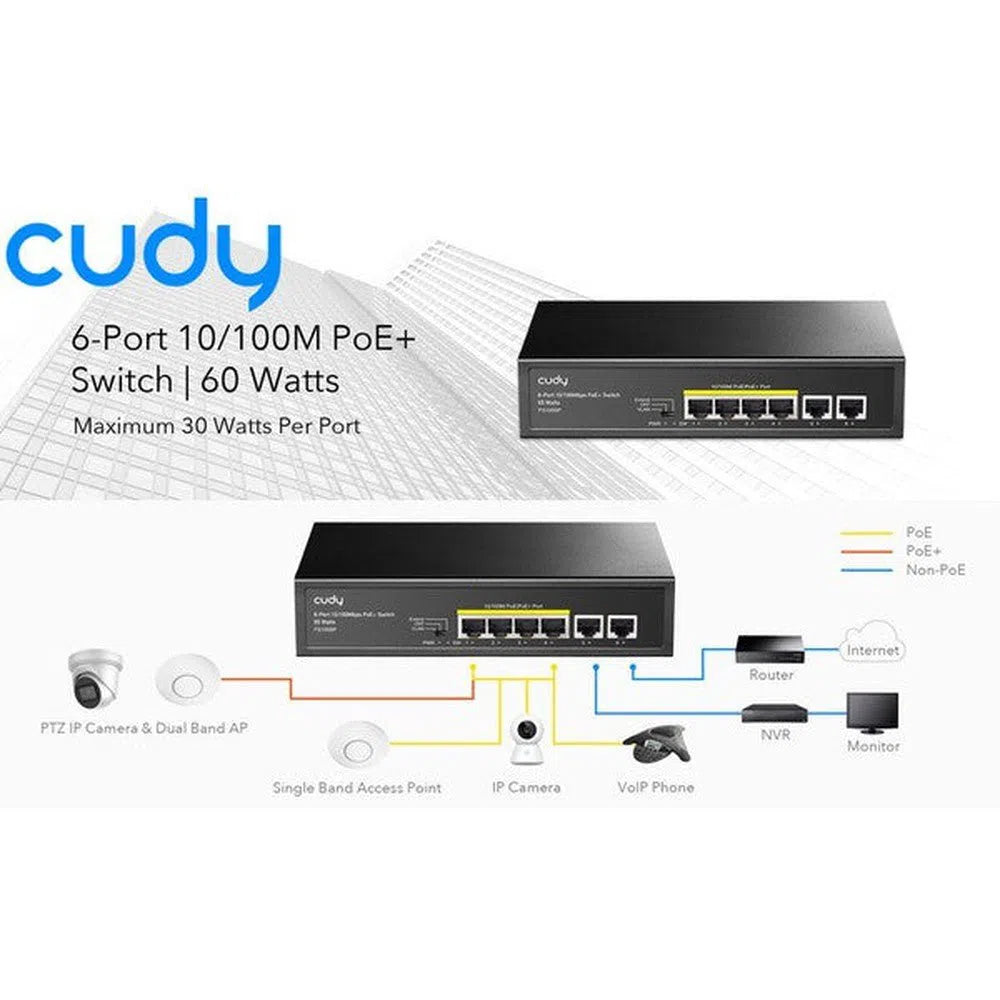

Simplify network expansion and device power delivery with this innovative PoE switch. This versatile switch caters to a wide range of applications, seamlessly powering devices like IP cameras and VoIP phones through a single Ethernet cable.
Couldn't load pickup availability
Cudy 6-Port 10/100M PoE+ Switch
Notify me when this is in stock
We will send you a notification as soon as this product is available again.
-
Estimated delivery: Jul 01 - Jul 05
-
Free return within 7 days of purchase.
Product description
Features:
- Complies with IEEE802.3af/at Standard
- Supports PoE power up to 32W for each PoE port
- Auto detect non PoE device and PoE device
- Power prioritization guarantee power supply of key nodes
- CCTV/VLAN mode switch, remote power and data up to 250m
- Supports IEEE802.3 x full duplex / half duplex flow control
- Supports storage and forward for Data exchange
| Model | FS1006P |
| Network Protocol | IEEE802.3 / IEEE802.3u IEEE802.3x / IEEE802.3af/at |
| PoE standard | IEEE802.3af/at |
| Interface | 6*10/100Mbps RJ45 port |
| POE port output | DC 52V |
| PoE port | 1-4 |
| AC Input Voltage | AC100~240V |
| Power supply | 65W |
| Power Pin | Power over spare pairs 1/2(+) , 3/6 (-) |
| PoE output-port | Max 30W |
| MAC Address | 1K MAC address table |
| Packet buffer | 448K bit |
| Transfer Mode | Store-and-forward |
| Bandwidth | 1.2Gbps |
| Fan | Fanless |
| Device Dimension | 200mm*120mm*45mm |
| Machine weight | <1kg |
| Operating Temperature | -20°C ~ 50 °C |
| Storage Temperature | -40 °C ~ 80 °C |
| Operating Humidity | 10% ~ 90% non-condensing |
| Storage Humidity | 5% ~ 90% non-condensing |
Additional Info
| Name | Cudy 6-Port 10/100M PoE+ Switch |
|---|---|
| SKU | FS1006P |
| Vendor | Cudy |
