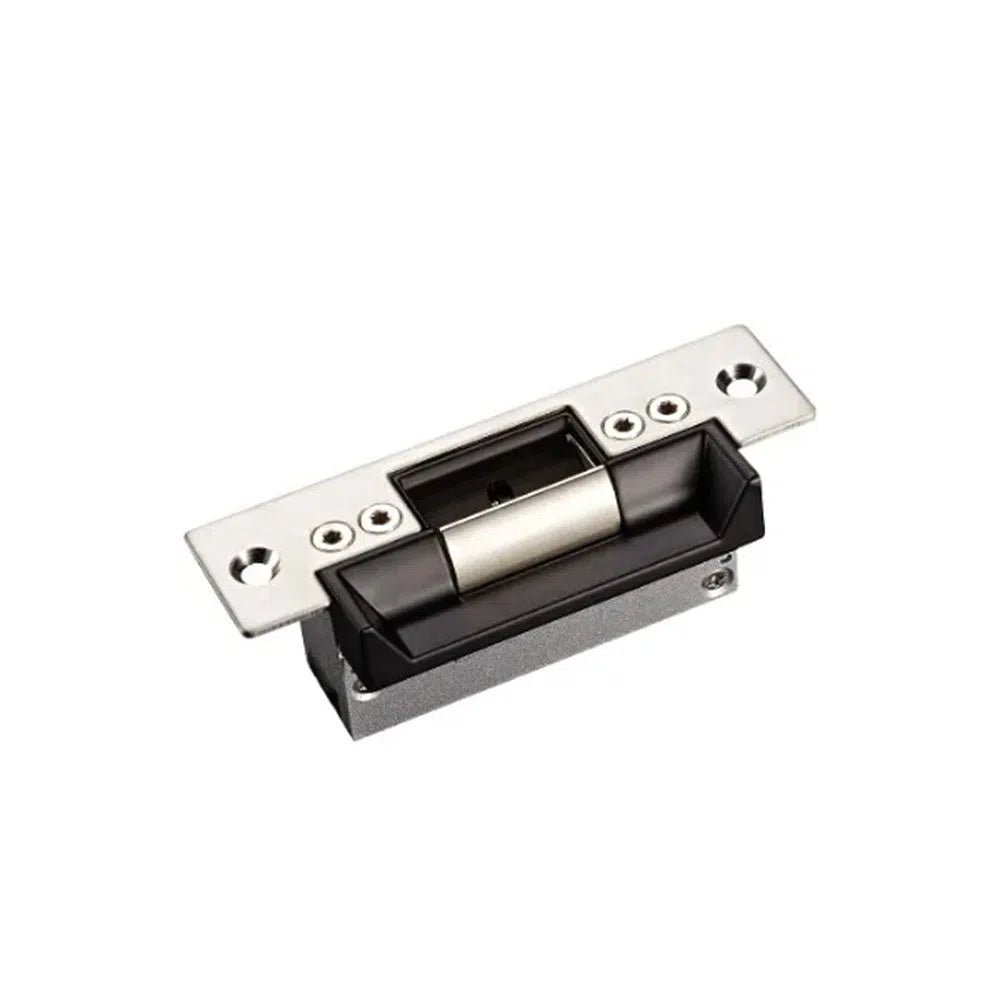

Standard Heavy Duty Electric Strike ANSI Lock - TES-136S
Couldn't load pickup availability
Standard Heavy Duty Electric Strike ANSI Lock - TES-136S
Notify me when this is in stock
We will send you a notification as soon as this product is available again.
-
Estimated delivery: Jul 01 - Jul 05
-
Free return within 7 days of purchase.
Product description
| Product Parameter | Description |
|---|---|
| Lock Size | 136: 123Lx43Wx42H(mm) 136-S: 123Lx43Wx42H(mm) 137-S: 174Lx44Wx27H(mm) |
| Strike Structure | Stainless Steel |
| Holding Force | 1000kg |
| Voltage | DC12V (Need Order DC24V) |
| Current | 12V/320mA;24V/160mA |
| Signal Output | Lock Status OutputNO/NC/COM |
| Panel selection | Stainless steel, high strength aluminum alloy |
| Suitable For | Wooden Door,Metal Door |
| Surface Temperature | Within +20℃ |
| Suitable Temperature | -10~+55℃(14-131F) |
| Operating Humidity | 0~90%(non-condensing) |
| Face plate Housing | Painted Steel |
| Lock tongue | Surface by coating nickel |
| Function | Built-out MOV |
| Weight | 136: 0.34kg 136-S: 0.34kg 137: 0.5kg |
Additional Info
| Name | Standard Heavy Duty Electric Strike ANSI Lock - TES-136S |
|---|---|
| SKU | TES-136S |
| Vendor | Trantech Security |
